Repair Procedures: Removal

Remove the wheel & tire.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

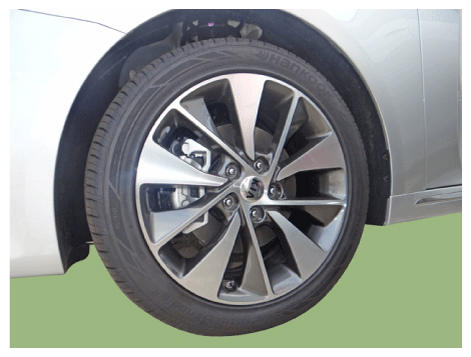

Fig 1: Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts when removing the rear wheel & tire.
Remove the front wheel speed sensor bolt (A) and bracket bolts (B).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Fig 2: Locating Front Wheel Speed Sensor Bolt And Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard.
(Refer to Body (Interior and Exterior) - "FRONT WHEEL GUARD ")
Disconnect the front wheel speed sensor connector (A) and then remove the front wheel speed sensor.

Fig 3: Locating Front Wheel Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
