Repair Procedures: Disassembly

Disconnect the battery negative cable.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")
Loosen the screw and then remove the paddle shift switch (A).
[LHS]

Fig 1: Paddle Shift Switch Screws (LHS)
Courtesy of KIA MOTORS AMERICA, INC.

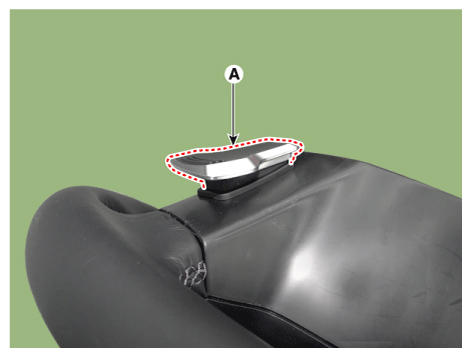

Fig 2: Locating Paddle Shift Switch (LHS)
Courtesy of KIA MOTORS AMERICA, INC.

[RHS]

Fig 3: Paddle Shift Switch Screws (RHS)
Courtesy of KIA MOTORS AMERICA, INC.

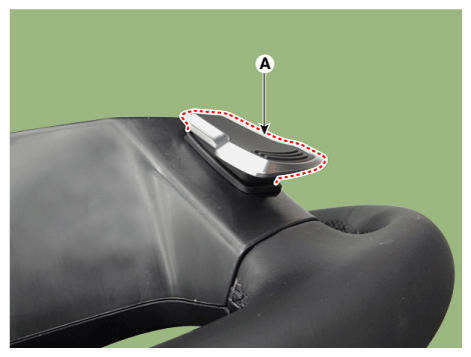

Fig 4: Locating Paddle Shift Switch (RHS)
Courtesy of KIA MOTORS AMERICA, INC.

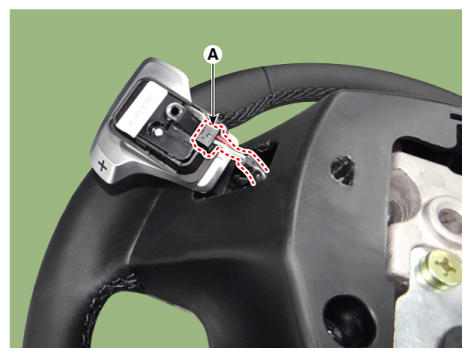

Remove the paddle switch connector (A).
[LHS]

Fig 5: Locating Paddle Switch Connector (LHS)
Courtesy of KIA MOTORS AMERICA, INC.

[RHS]

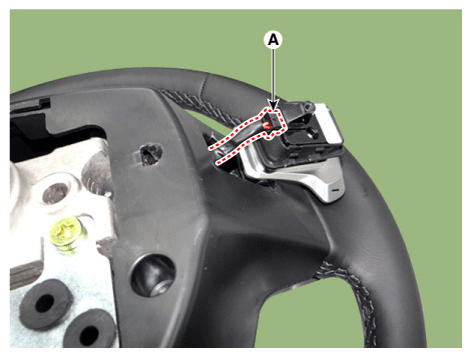

Fig 6: Locating Paddle Switch Connector (RHS)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering back cover (A).

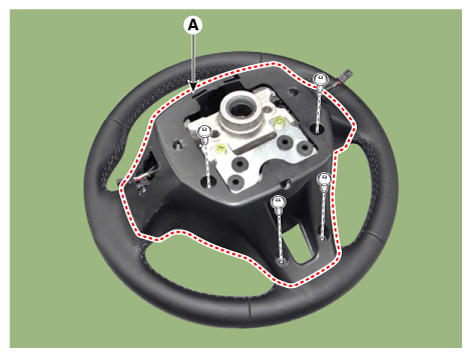

Fig 7: Locating Steering Back Cover With Screws
Courtesy of KIA MOTORS AMERICA, INC.

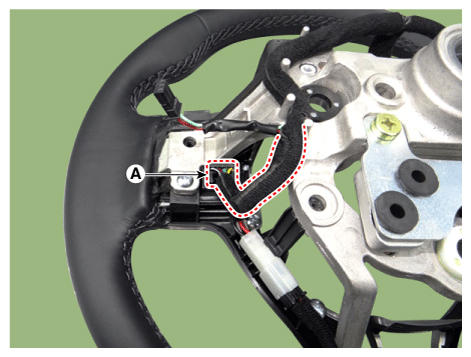

Disconnect the connector (A) from the steering wheel remote control.
[LHS]

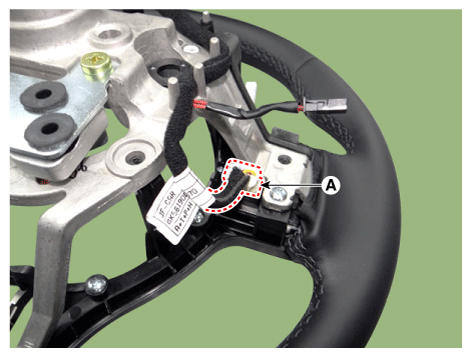

Fig 8: Locating Steering Wheel Remote Control Connector (LHS)
Courtesy of KIA MOTORS AMERICA, INC.

[RHS]

Fig 9: Locating Steering Wheel Remote Control Connector (RHS)
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the screw and then remove the steering wheel remote control assembly (A).

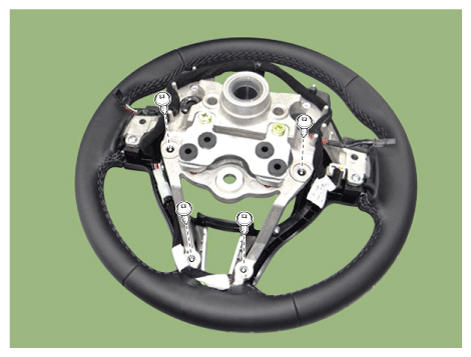

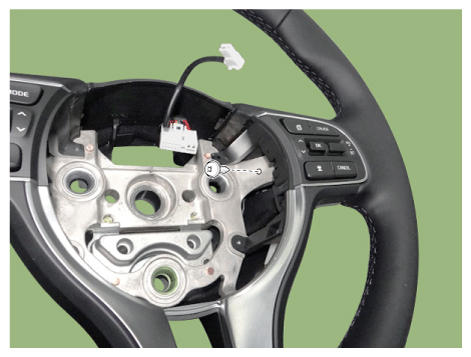

Fig 10: Steering Wheel Remote Control Assembly Screws
Courtesy of KIA MOTORS AMERICA, INC.

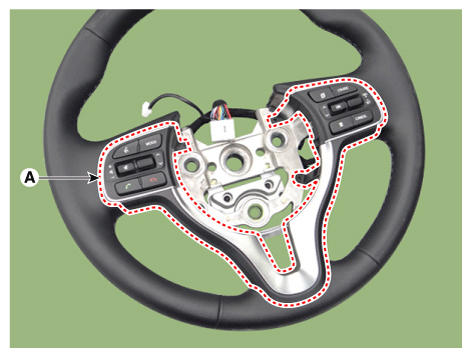

Fig 11: Locating Steering Wheel Remote Control Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the heated connector and then remove the heated wire.

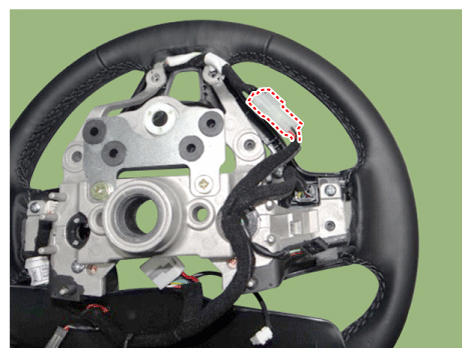

Fig 12: Heated Connector
Courtesy of KIA MOTORS AMERICA, INC.

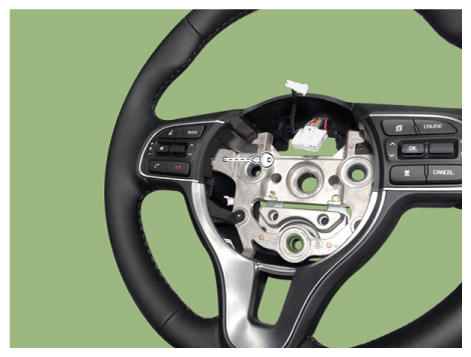

Loosen the screw and then remove the steering wheel remote control (A).
[LHS]

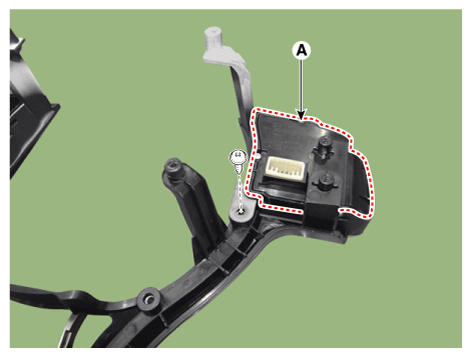

Fig 13: Locating Steering Wheel Remote Control With Screw (LHS)
Courtesy of KIA MOTORS AMERICA, INC.

[RHS]

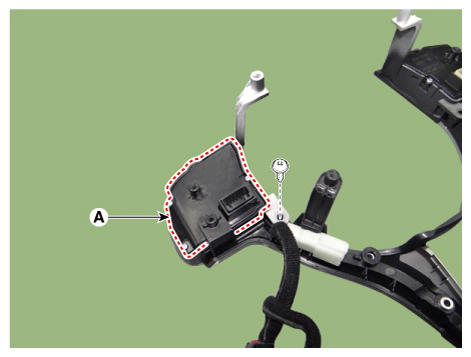

Fig 14: Locating Steering Wheel Remote Control With Screw (RHS)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
