Smart Key Status Check

  1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.

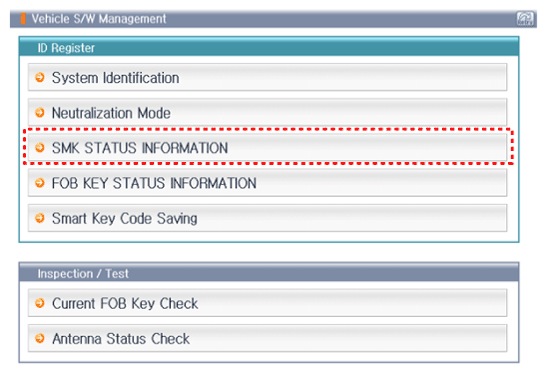

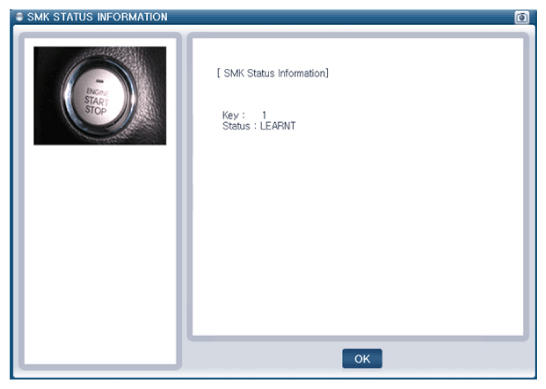

  2. After ignition "ON", select the "SMK STATUS INFO".
G12351916Courtesy of KIA MOTORS AMERICA, INC.
G12351917Courtesy of KIA MOTORS AMERICA, INC.
