Rear Power Window Motor

1. Disconnect the negative (-) battery terminal.
2. Remove the rear door trim.

   (Refer to Body - "REAR DOOR TRIM ")

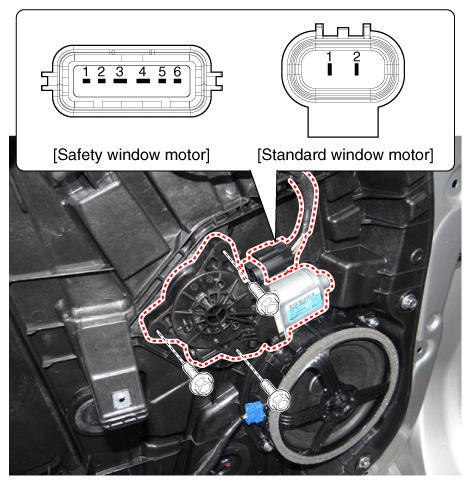

3. Disconnect the motor connector from the motor.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Connect the terminals No. 2 and No. 3 to battery voltage (12V) and check that the motor operates smoothly when connecting the terminals below.

   [Safety Window Motor]

   Courtesy of KIA MOTORS AMERICA, INC.

5. Connect the motor terminals No. 1 and No. 2 directly to battery voltage (12V) and check that the motor operates smoothly.

If the operation is abnormal, replace the motor.

[Standard Window Motor]

Courtesy of KIA MOTORS AMERICA, INC.
