Driver/Passenger Power Window Switch
CAUTION:
- Be careful not to scratch the door trim and other parts.
- Take caution when keeping and handling during disassembly/assembly as it is easily contaminated by lubricant and oil.
- Disconnect the negative (-) battery terminal.
- Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")

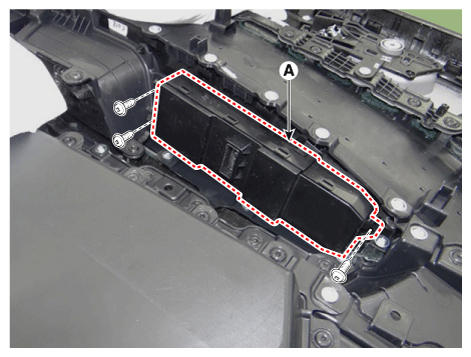

- Loosen the power window switch assembly mounting screws.

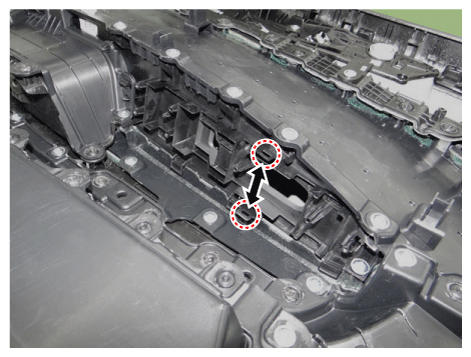

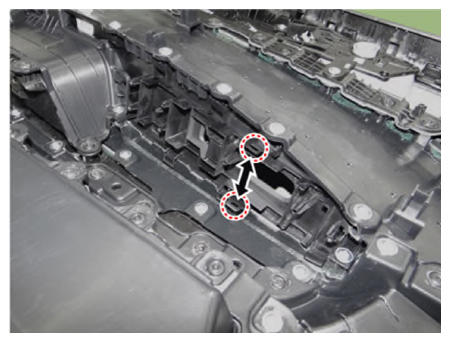

- Remove the power window switch assembly (A) after disengaging the mounting clips.
Information
- Replace any damaged clips.
