Home
>>
Kia
>>
2017
>>
Optima Plug-In Hybrid EX
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Electronic Stability Control (ESC) System (PHEV)
>>
Emergency Signal System
>>
Description And Operation
>>
Description
>>
System Configuration
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

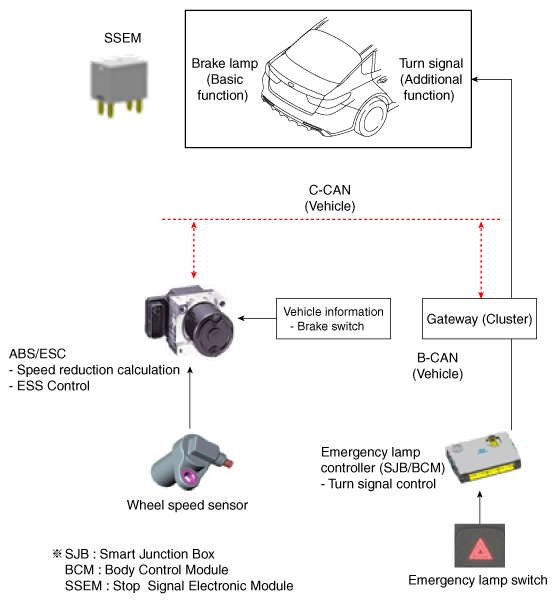

System Configuration
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
