Smart Key Code Saving

Connect the DLC cable of KDS/GDS to the data link connector (16 pins) in driver side crash pad lower panel, and turn on the KDS/GDS.

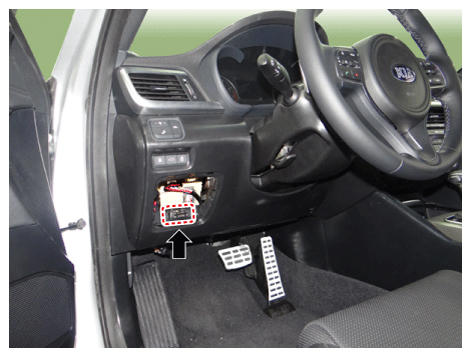

Fig 1: Locating Data Link Connector (16 Pins)
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then perform "SMART KEY CODE SAVING ".

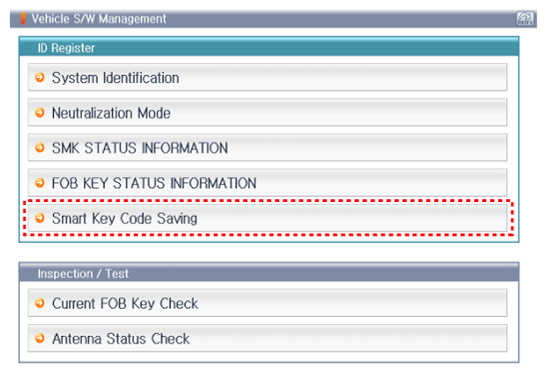

Fig 2: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, press "Enter". Then, the following screen will appear.

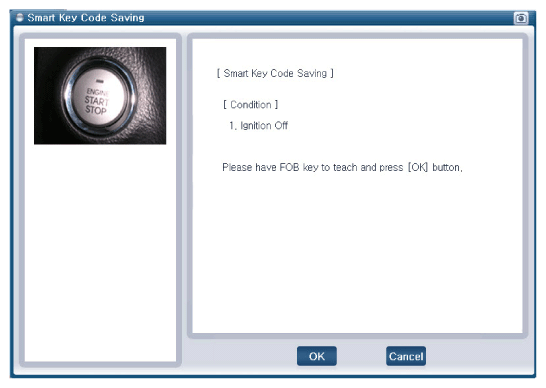

Fig 3: Scantool Display - Smart Key Code Saving (Condition)
Courtesy of KIA MOTORS AMERICA, INC.
After producing the smart key to be taught, press "Enter".
Input the "Pin code" for first key teaching.

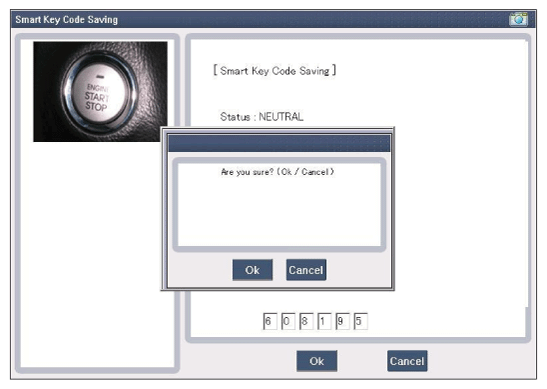

Fig 4: Scantool Display - Smart Key Code Saving (Neutral)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Scantool Display - Smart Key Code Saving (Message)
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 seconds after pressing "OK".

Fig 6: Scantool Display - 1st Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

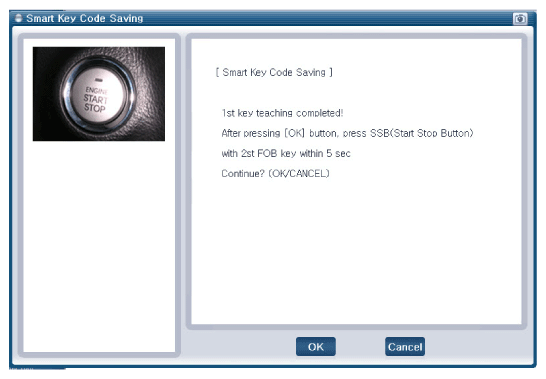

Fig 7: Scantool Display - 1st Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 seconds after pressing "OK".

Fig 8: Scantool Display - 1st Key Teaching Completed (With Smart Key Within 5 Seconds)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

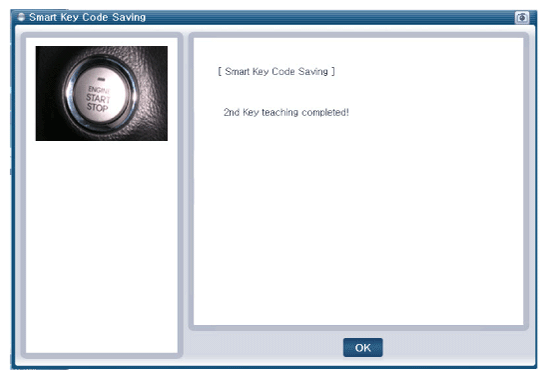

Fig 9: Scantool Display - Second Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown as below when key teaching process is completed.

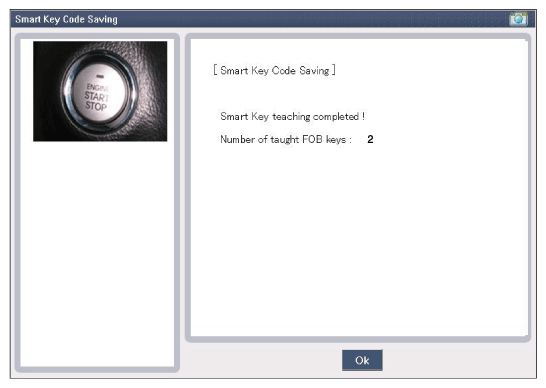

Fig 10: Scantool Display - Smart Key Teaching Completed

Courtesy of KIA MOTORS AMERICA, INC.
