Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

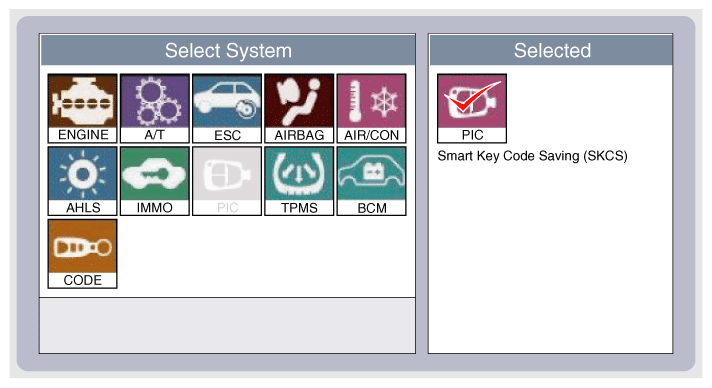

Fig 2: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - ID Register
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown in illustration below.

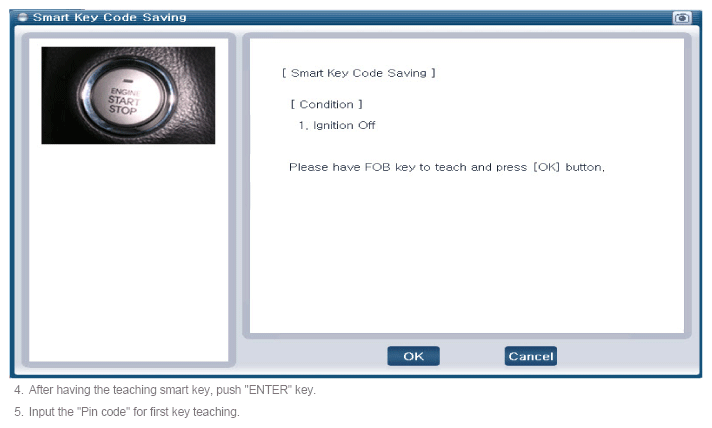

Fig 4: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After having the teaching smart key, push "ENTER" key.
Input the "Pin code" for first key teaching.

Fig 5: Scantool Display - Smart Key Code Saving (Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

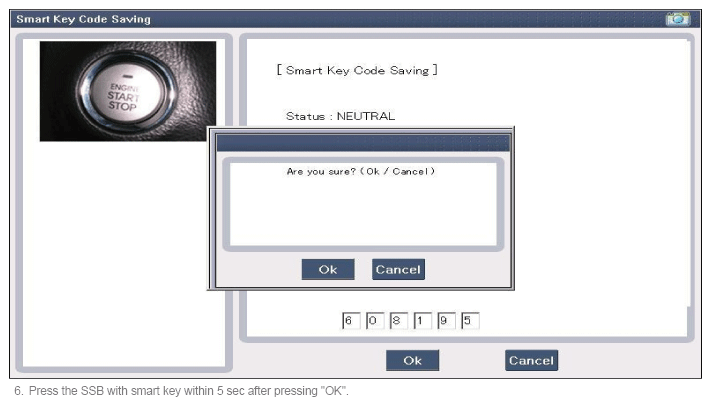

Fig 6: Scantool Display - Smart Key Code Saving (Message For OK)
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

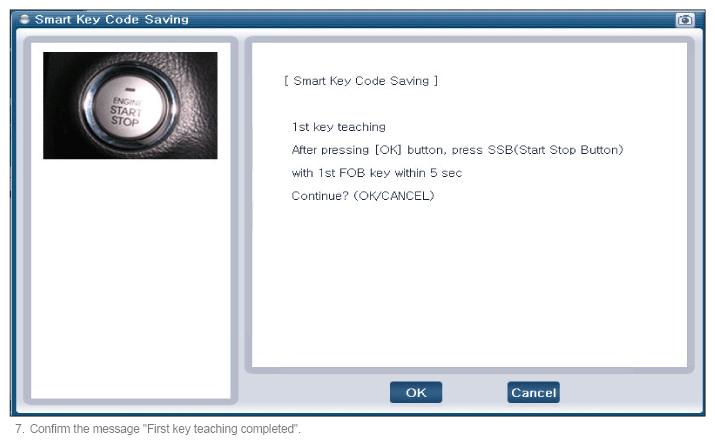

Fig 7: Scantool Display - Smart Key Code Saving (1st Key Teaching)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 8: Scantool Display - Smart Key Code Saving (1st Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

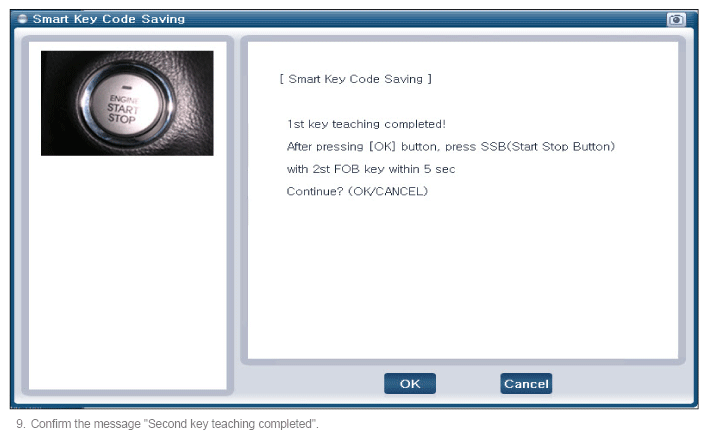

Fig 9: Scantool Display - Smart Key Code Saving (1st Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

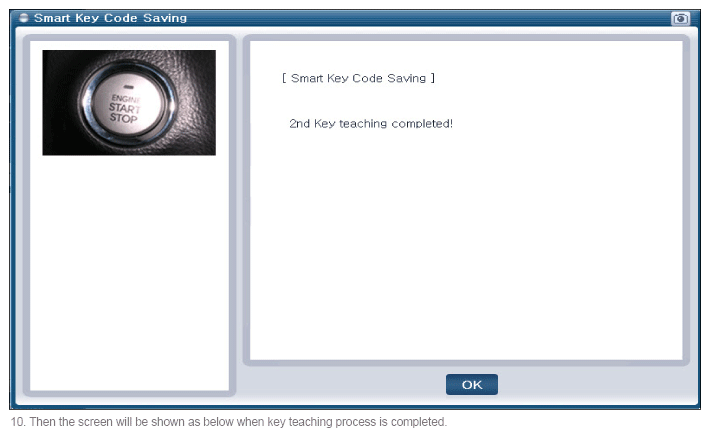

Fig 10: Scantool Display - Smart Key Code Saving (2nd Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown in illustration below when key teaching process is completed.

Fig 11: Scantool Display - Smart Key Teaching Completed

Courtesy of KIA MOTORS AMERICA, INC.
