Monitor GDS Data

  1. Connect GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Monitor the "Cruise Control" parameters on the GDS.

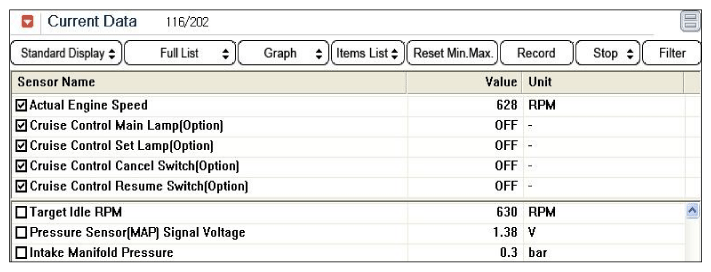

    Fig 1: Screen Display - Cruise Control Parameters On GDS
    G11847728Courtesy of KIA MOTORS AMERICA, INC.

    Check the change of the cruise control sensor data, turning on and off the cruise control switch.

    If the DTC related with CAN communication error (U0001) occurs, repair it first.

  4. Is parameter displayed within specifications?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
