Components And Components Location: Components

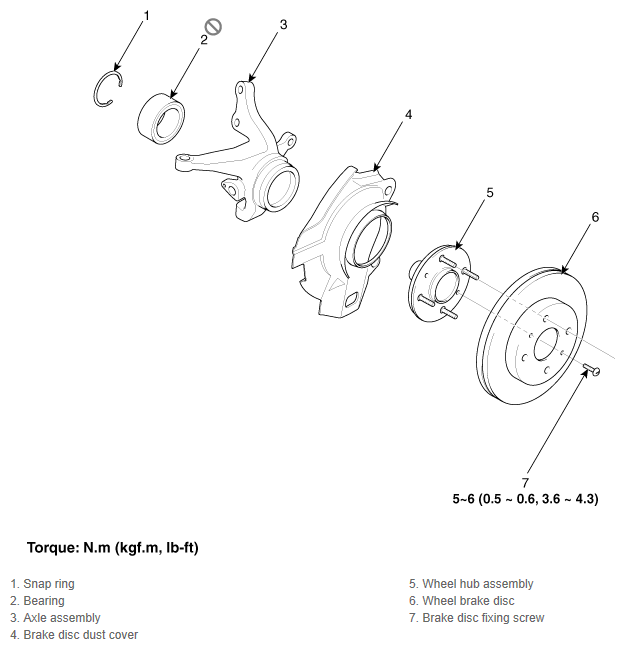

Fig 1: Locating Front Hub Knuckle Components With Torque Specification
G11845586Courtesy of KIA MOTORS AMERICA, INC.
