Components Location

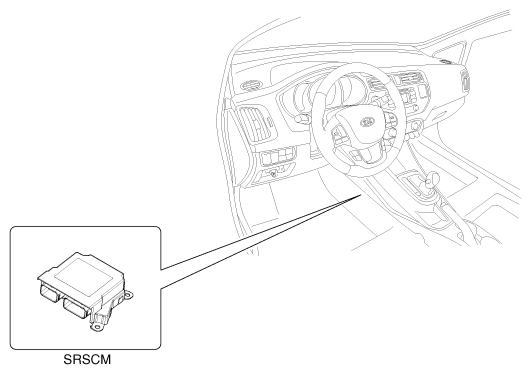

Supplemental Restraint System Control Module (SRSCM)

Fig 1: Supplemental Restraint System Control Module

Courtesy of KIA MOTORS AMERICA, INC.

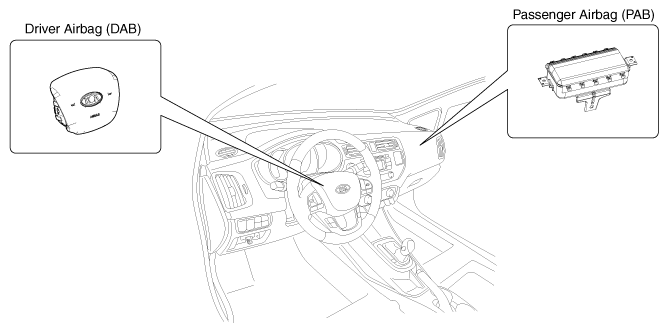

Driver Airbag (DAB)/Passenger Airbag (PAB)

Fig 2: Driver Airbag (DAB)/Passenger Airbag (PAB)

Courtesy of KIA MOTORS AMERICA, INC.

Side Airbag (SAB)

Fig 3: Side Airbag (SAB)

Courtesy of KIA MOTORS AMERICA, INC.

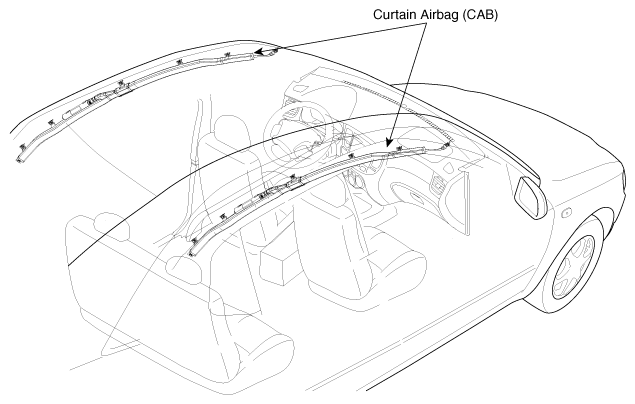

Curtain Airbag (CAB)

Fig 4: Curtain Airbag (CAB)

Courtesy of KIA MOTORS AMERICA, INC.

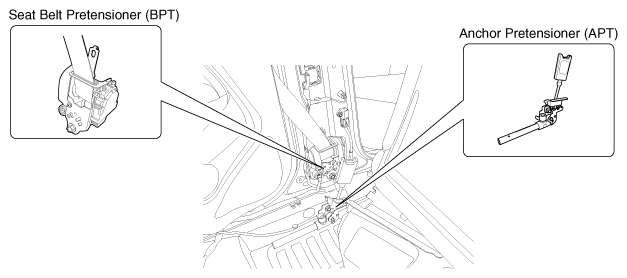

Seat Belt Pretensioner (BPT)/Anchor Pretensioner (APT)

Fig 5: Seat Belt Pretensioner (BPT)/Anchor Pretensioner (APT)

Courtesy of KIA MOTORS AMERICA, INC.

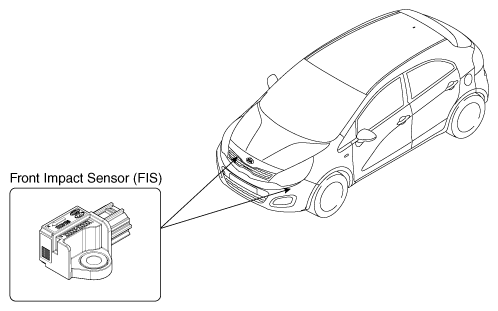

Front Impact Sensor (FIS)

Fig 6: Front Impact Sensor (FIS)

Courtesy of KIA MOTORS AMERICA, INC.

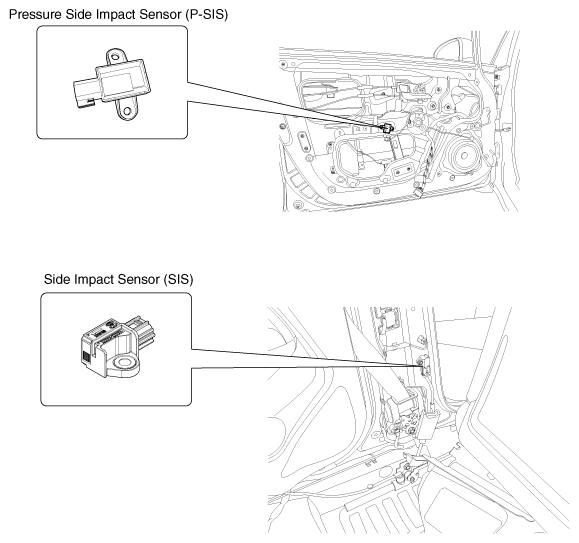

Side Impact Sensor (SIS)

Fig 7: Side Impact Sensor (SIS)

Courtesy of KIA MOTORS AMERICA, INC.
