Components And Components Location: Components

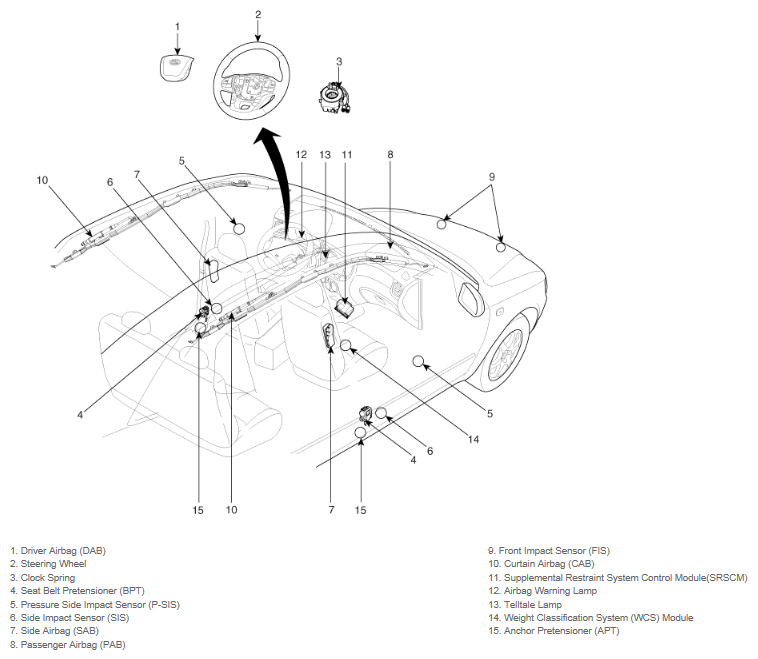

Fig 1: Driver Airbag Components

G11845896

Courtesy of KIA MOTORS AMERICA, INC.
