Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

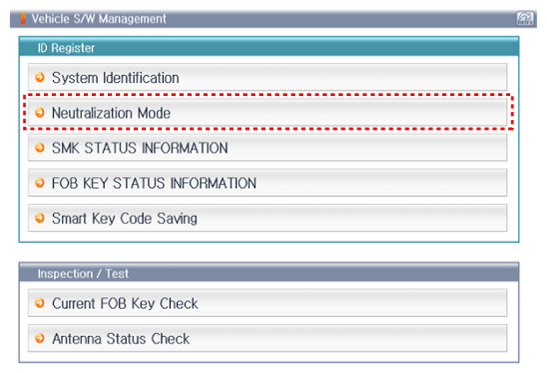

Fig 1: Screen Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

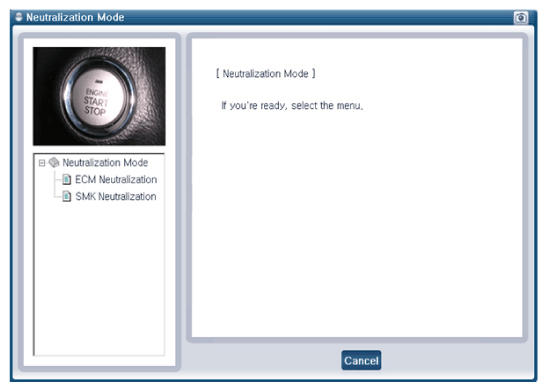

Fig 2: Screen Display - Neutralization Mode
Courtesy of KIA MOTORS AMERICA, INC.
Select the "ECM Neutralization" or "SMK Neutralization".

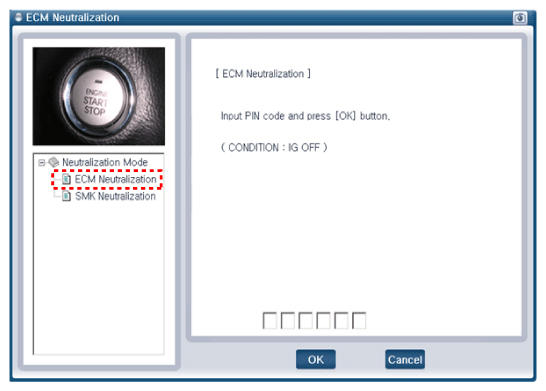

Fig 3: Screen Display - ECM Neutralization
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - SMK Neutralization
Courtesy of KIA MOTORS AMERICA, INC.
