Components And Components Location: Components

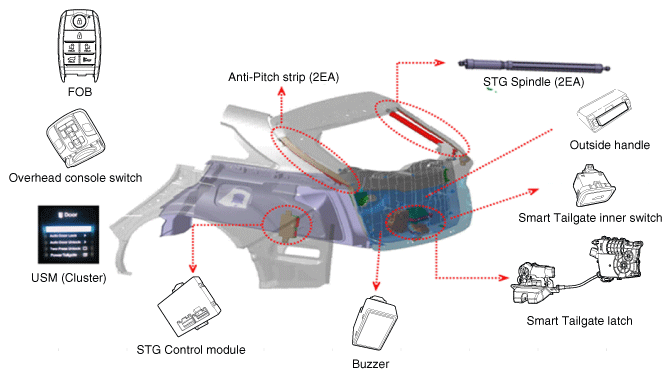

Fig 1: Smart Tailgate System Components Location (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Smart Tailgate Inner Switch With Connector End View & Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
