Components And Components Location: Components

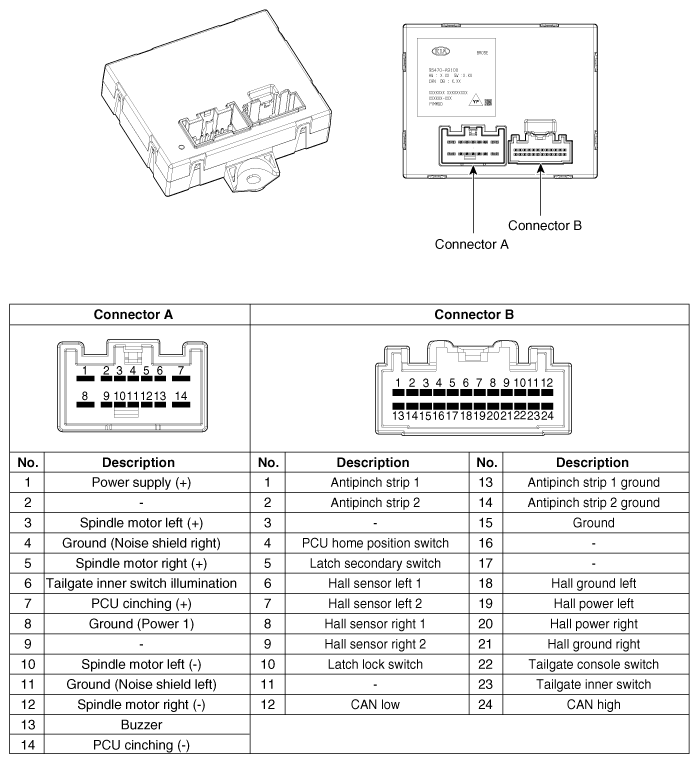

Fig 1: Smart Tailgate Unit Connector End View With Description Chart
G12272534Courtesy of KIA MOTORS AMERICA, INC.
