Components And Components Location
>>
Components Location
>>
[Fuel Tank]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[Fuel Tank]

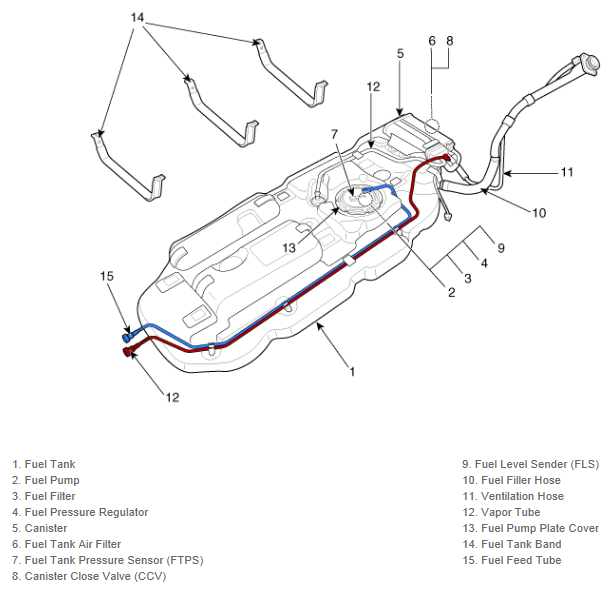

Fig 1: Fuel Tank Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
