Check HO2S (B1/S1) Performance

  1. Warm up the engine to normal operating temperature.
  2. Connect VMI to GDS and select "Oscilloscope".
  3. Connect Channel A positive probe to Pin No. 1 (high) and Channel A negative probe to Pin No. 2 (low).

    Specification  : Refer to Fig 1

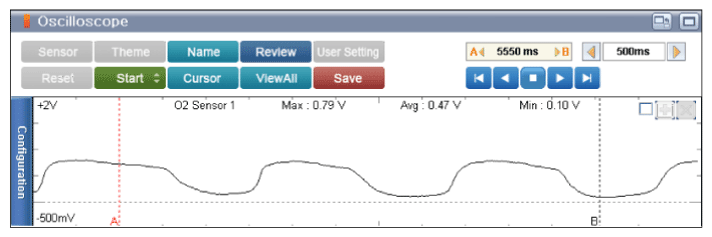

Fig 1: Screen Display - Signal Waveform Of O2S1 At Normal Condition
G12276631Courtesy of KIA MOTORS AMERICA, INC.
