Inspect PCSV

  1. IG Key "OFF".
  2. Disconnect PCS connector.
  3. Measure resistance between Pin No. 2(Power) terminal and Pin No. 1(Control) terminal of the PCSV.

    Specification:  Approx. 2.0kΩ(20°C)

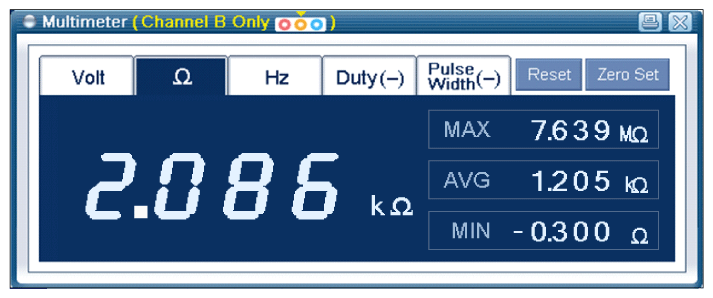

    Fig 1: Scantool Display - Resistance Of PCSV
    G12274432Courtesy of KIA MOTORS AMERICA, INC.
