Connector Pin Information

No.	Connector A	No.	Connector B
1	Mirror sensor power_output	1	Battery (+) power
2	Mirror horizontal sensor_input	2	-
3	Mirror vertical sensor_input	3	IGN1
4	Front assist window switch (Up)_output (Safety)	4	Battery (+)
5	Front assist window switch (Down)_output (Safety)	5	-
6	Front assist auto_output (Safety)	6	Mirror common_output
7	Window lock_output	7	Assist mirror heater_output
8	Rear assist window switch (Up)_output (Safety)	8	Pocket lamp_output
9	Rear assist window switch (Down)_output (Safety)	9	Safety power window enable_output
10	Rear assist auto_output (Safety)	10	Front assist window (Up)_output
11	Mirror sensor GND_output	11	Front assist window (Down)_output
12	Body CAN (Low)	12	-
13	Body CAN (High)	13	GND_Power
14	Door lock_output	14	-
15	-	15	-
16	-	16	Battery (+) mirror control
17	Door unlock_output	17	Assist mirror vertical_output
18	-	18	Assist mirror horizontal_output
19	-
20	GND

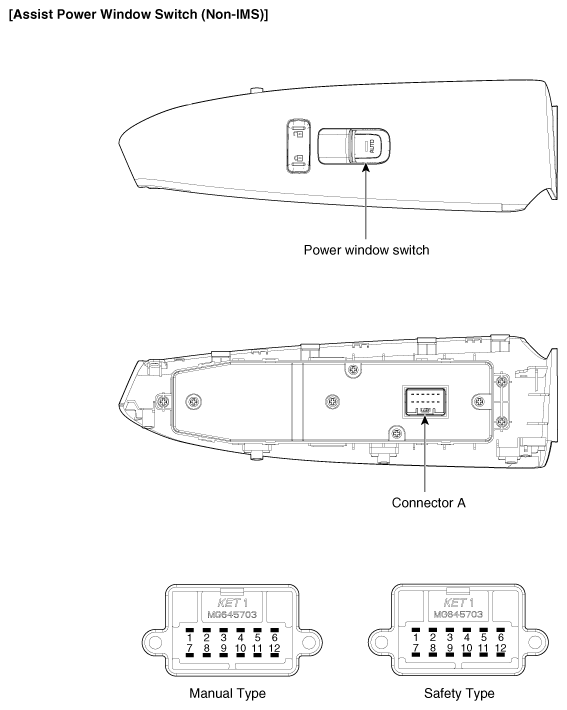

Fig 1: Assist Power Window Switch Connector Terminals (Non-IMS)

Courtesy of KIA MOTORS AMERICA, INC.

No.	Connector A (Manual Type)	No.	Connector A (Safety Type)
1	-	1	Tail lamp_input
2	Tail lamp_input	2	-
3	Door lock	3	Door lock
4	Door unlock	4	Door unlock
5	-	5	-
6	Battery (+)	6	GND
7	GND	7	Battery (+)
8	Driver window (Up)_input	8	-
9	Driver window (Down)_input	9	Auto_output
10	Front assist window (Up)_output	10	Front assist window (Up)_output
11	Front assist window (Down)_output	11	Front assist window (Down)_output
12	Driver safety enable_input	12	-
