Components And Components Location: Components

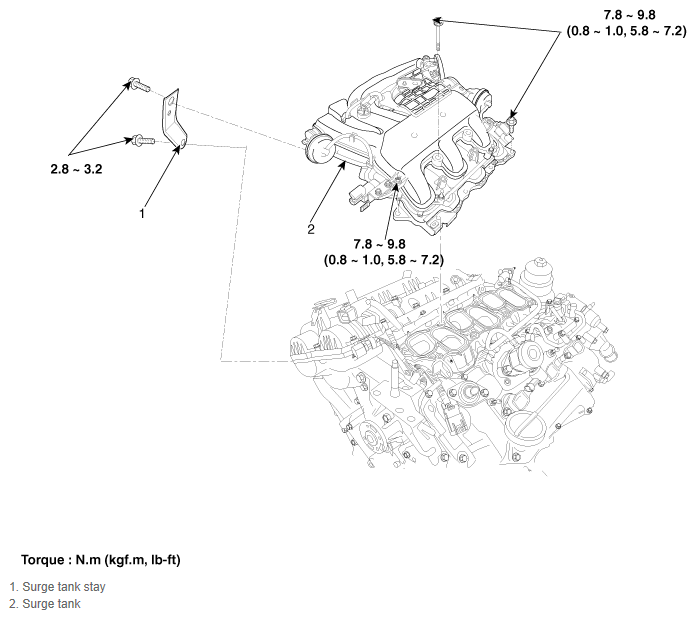

Fig 1: Surge Tank Components Location With Torque Specification
G12273338Courtesy of KIA MOTORS AMERICA, INC.
