Repair Procedures: Disassembly

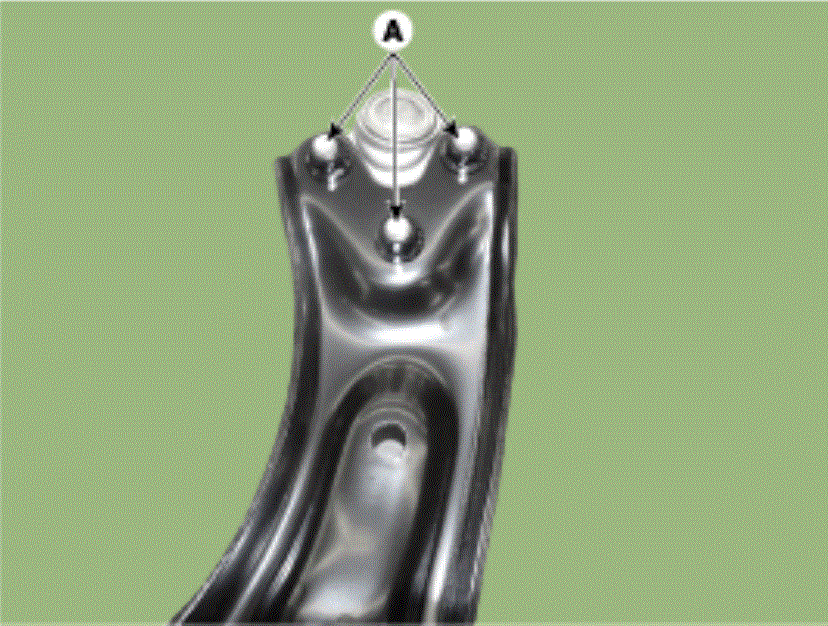

Disconnect the ball joint after loosening the nut (A).
Tightening torque : 117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.6 - 101.3 lb.ft)

Fig 1: Locating Ball Joint Nuts
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

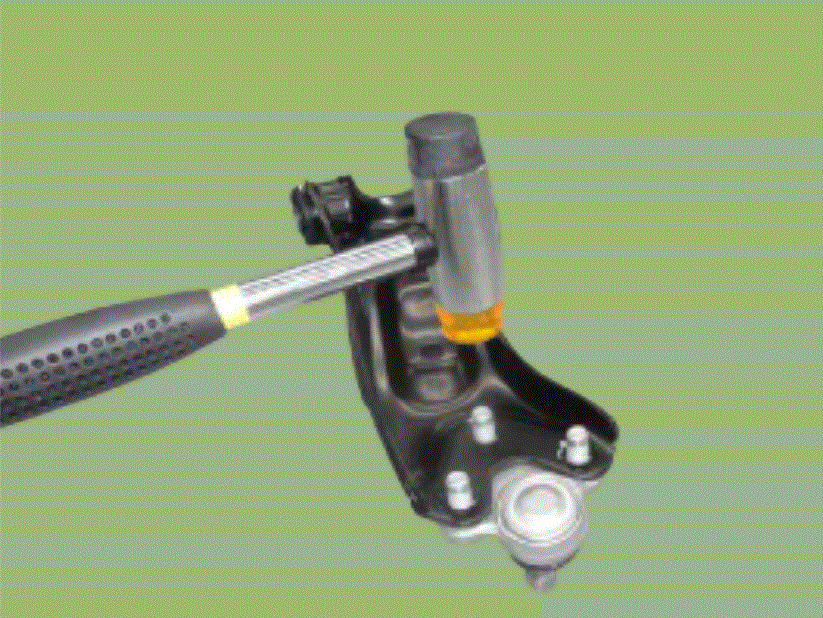

- Using a plastic hammer, remove the ball joint.
- Do not damage the lower arm.
Fig 2: Remove Ball Joint
Courtesy of KIA MOTORS AMERICA, INC.
Install a new ball joint and then tighten the nut (A).
Tightening torque : 117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.6 - 101.3 lb.ft)

Fig 3: Locating Ball Joint Nuts
Courtesy of KIA MOTORS AMERICA, INC.

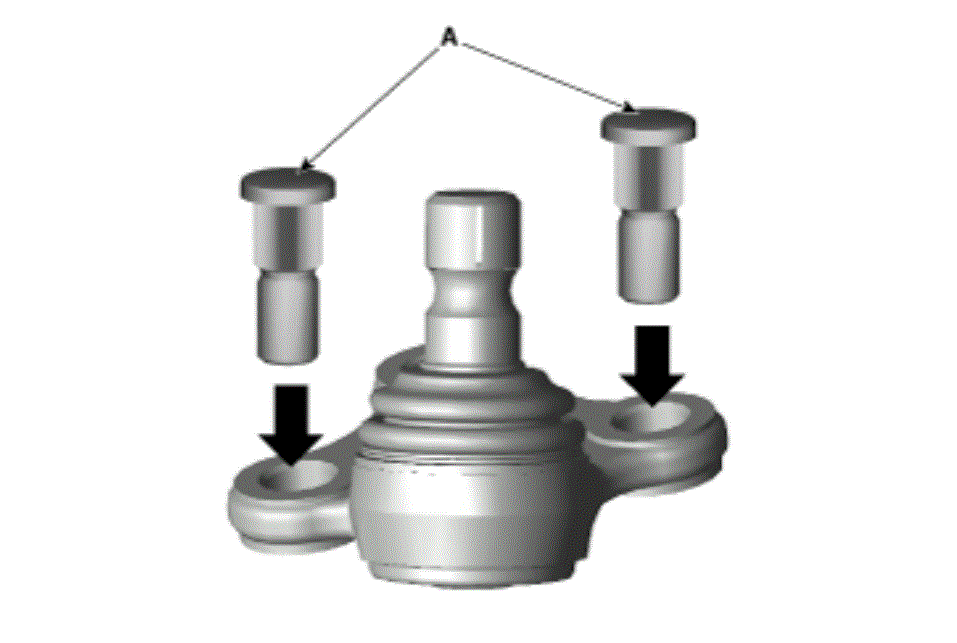

NOTE: When replace the ball joint with a new one, insert the bolt (A) into the ball joint with a certain pressure.
Insert the bolt to the ball joint without any gap.

Fig 4: Insert Bolts
Courtesy of KIA MOTORS AMERICA, INC.
