Visual check

Check Camshaft and crankshaft alignment.

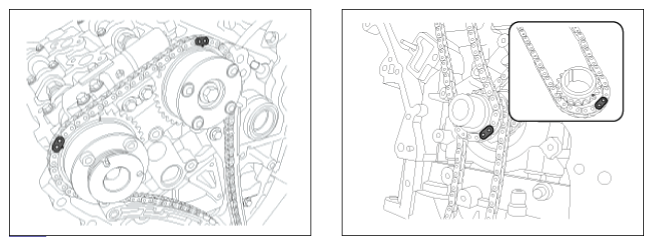

Fig 1: Checking Timing Position Of Camshafts And Crankshaft (Bank 1)
Courtesy of KIA MOTORS AMERICA, INC.

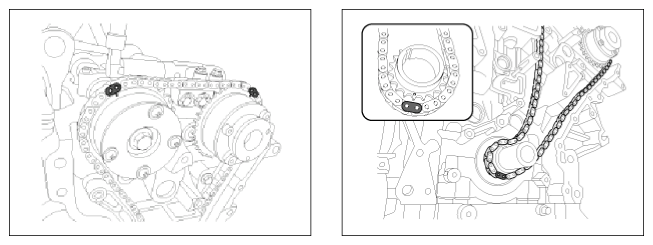

Fig 2: Checking Timing Position Of Camshafts And Crankshaft (Bank 2)
Courtesy of KIA MOTORS AMERICA, INC.
Have any problems been found?
YES
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
