Variant Coding

  1. Ignition "ON".
  2. Perform "Vehicle S/W Management" → "Variant Coding" with KDS/GDS.
  3. Select the "Variant Coding" and set the proper option.
  4. Check for DTCs in the system.

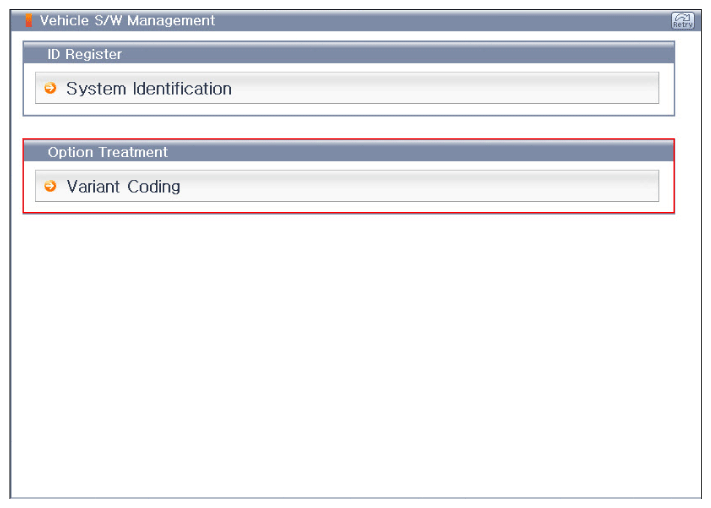

Fig 1: Scantool Display - Variant Coding Procedure On Vehicle S/W Management
G12275787Courtesy of KIA MOTORS AMERICA, INC.

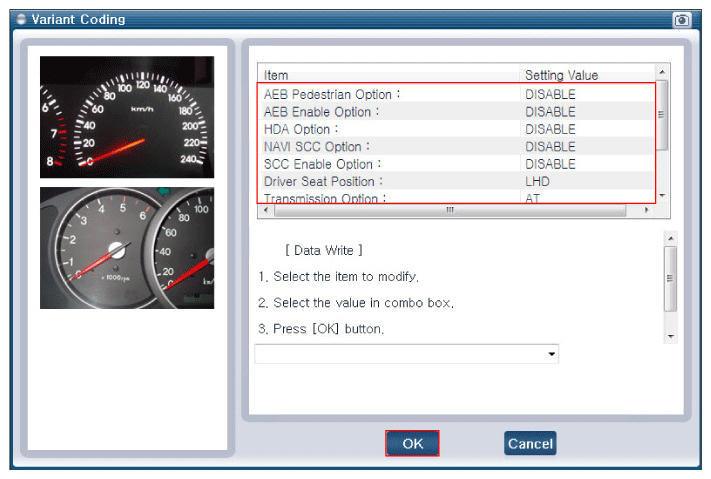

Fig 2: Scantool Display - Variant Coding (Data Write)
G12275788Courtesy of KIA MOTORS AMERICA, INC.

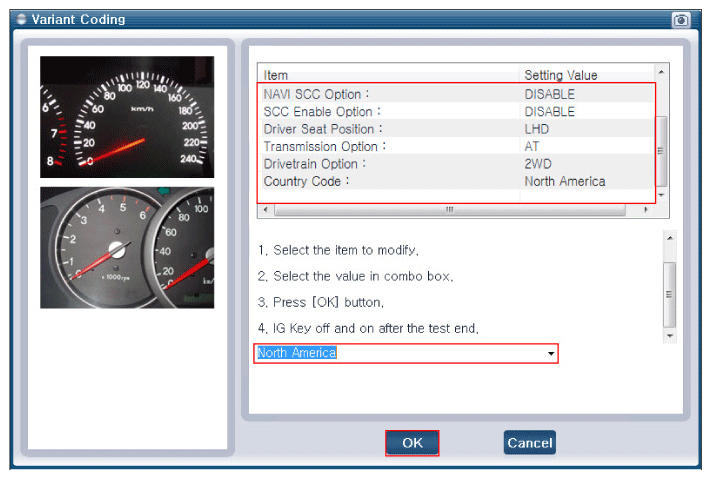

Fig 3: Scantool Display - Variant Coding
G12275789Courtesy of KIA MOTORS AMERICA, INC.

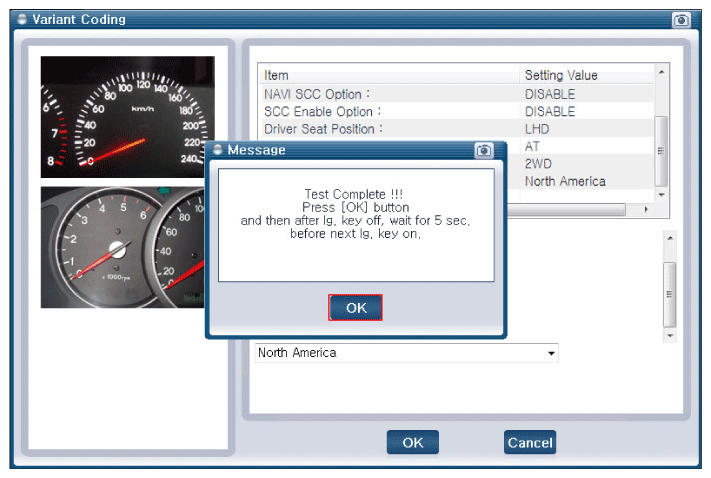

Fig 4: Scantool Display - Variant Coding (Test Completed)
G12275790Courtesy of KIA MOTORS AMERICA, INC.
