Components And Components Location: Components

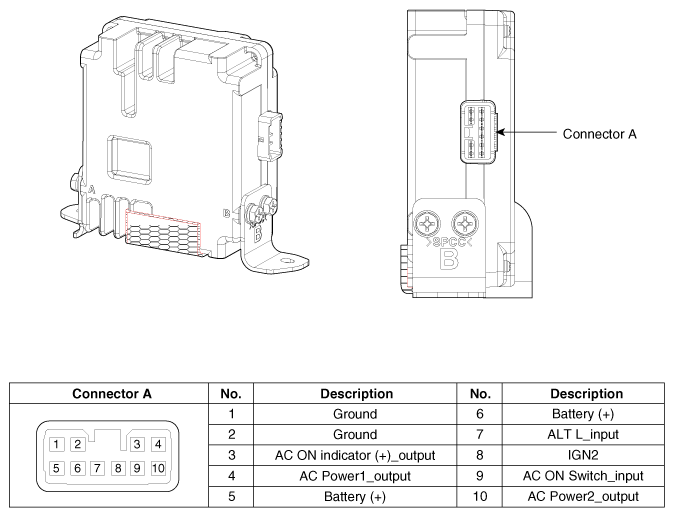

Fig 1: Locating AC Inverter Unit & Connector Terminals
G12173228Courtesy of KIA MOTORS AMERICA, INC.
