Monitor GDS Data

  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "OFF".
  4. Perform "Write VIN" in "Vehicle S/W Management  " with GDS.
    CAUTION: Once VIN is programmed, it cannot be changed. Confirm and have VIN in hand before performing "Write VIN".

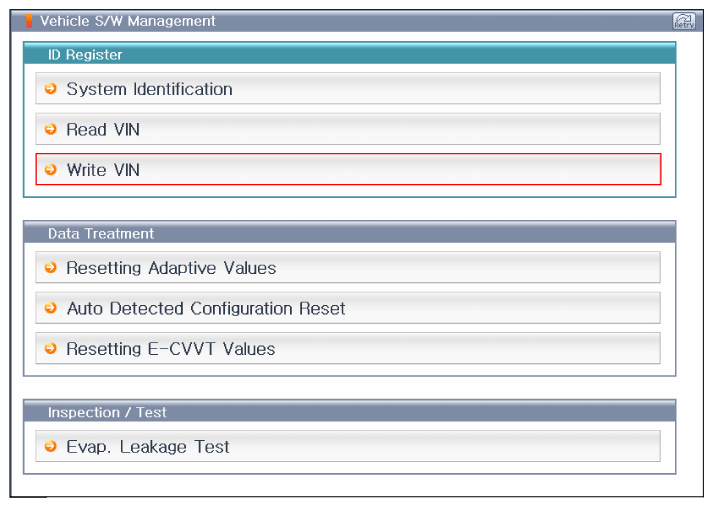

    Fig 1: Scantool Display - Write VIN Procedure 1
    G12174139Courtesy of KIA MOTORS AMERICA, INC.

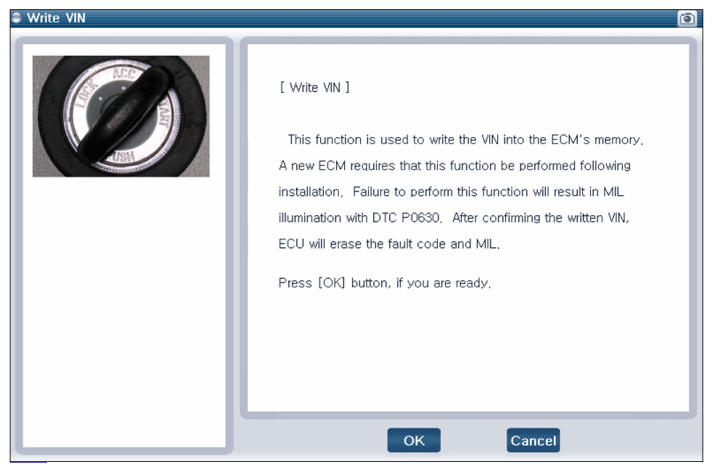

    Fig 2: Scantool Display - Write VIN Procedure 2
    G12174140Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Scantool Display - Write VIN Procedure 3
    G12174141Courtesy of KIA MOTORS AMERICA, INC.
    Fig 4: Scantool Display - Write VIN Procedure 4
    G12174142Courtesy of KIA MOTORS AMERICA, INC.
    WARNING: Confirm VIN again and input correct VIN. VIN CANNOT BE CHANGED ONCE IT IS WRITTEN ON PCM.

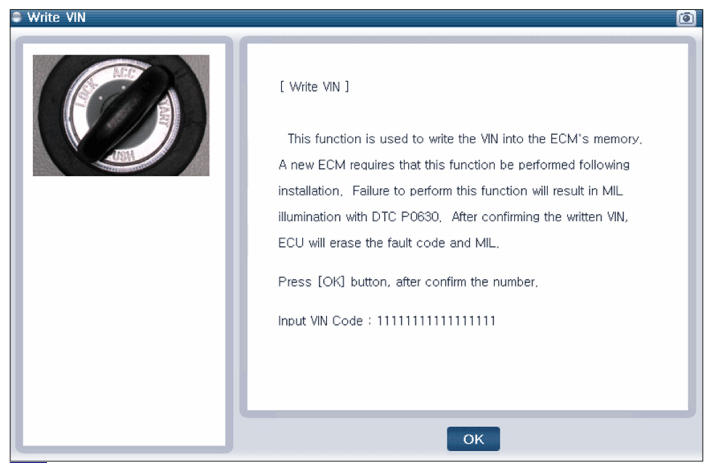

    Fig 5: Scantool Display - Write VIN Procedure 5
    G12174143Courtesy of KIA MOTORS AMERICA, INC.
    Fig 6: Scantool Display - Write VIN Procedure 6
    G12174144Courtesy of KIA MOTORS AMERICA, INC.
  5. Ignition "OFF" and then "ON".
  6. Check for "Diagnostic Trouble Codes (DTC)  " with GDS.
  7. Does P0630 present as Active?

    YES

    • Carefully re-do this troubleshooting guide steps.
    • If the diagnostics have been performed correctly with no failure found, replace the ECM/PCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
      CAUTION: When replacing the PCM, the vehicle equipped with the immobilizer must be performed procedure as below.
      [In the case of installing used PCM]
      1. Perform "PCM Neutral mode" procedure with GDS. (Refer to "IMMOBILIZER SYSTEM " )
      2. After finishing "PCM Neutral mode", perform "TEACHING PROCEDURES " procedure with GDS. (Refer to "IMMOBILIZER SYSTEM " )

      [In the case of installing new PCM]
      Perform "TEACHING PROCEDURES " procedure with GDS. (Refer to "IMMOBILIZER SYSTEM " )
      CAUTION: When replacing the PCM, the vehicle equipped with the smart key system (Button start) must be performed procedure as below.
      [In the case of installing used PCM]
      1. Perform "PCM Neutral mode" procedure with GDS. (Refer to "SMART KEY " )
      2. After finishing "PCM Neutral mode", insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the PCM learns the smart key information automatically.

      [In the case of installing new PCM]
      Insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the PCM learns the smart key information automatically.

    NO
