Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.
NOTE:
- The existing valve body cover gasket must be replaced with new one. (Do not reuse it.)
- Perform the procedures below after replacing the solenoid valve.
1. Refill the automatic transaxle with fluid.
  (Refer to "FLUID ")
2. Reset the automatic transaxle adaptive values using the KDS/GDS.

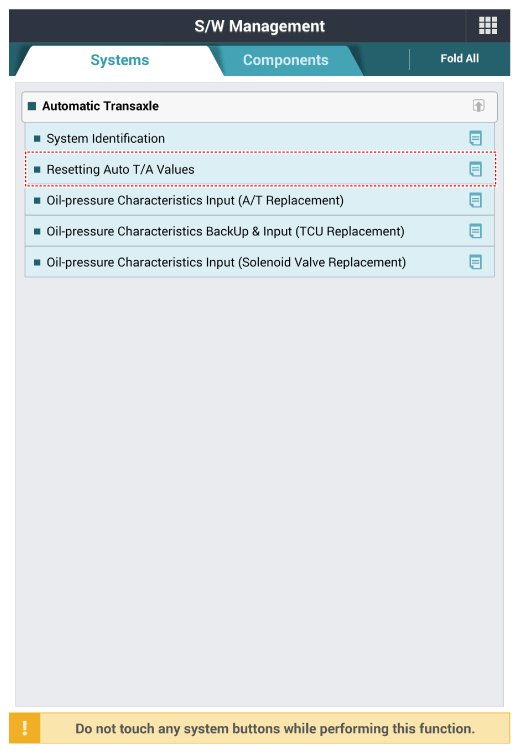

  Fig 1: Scantool Display - S/W Management
  Courtesy of KIA MOTORS AMERICA, INC.
3. Perform the TCM adaptive values learning procedure.
  (Refer to "TCM Adaptive Values Learning ")
4. Confirm that there is no fluid leakage on connections after repairing.
