Monitor KDS/GDS Data

■ Cluster module variant coding

1. Verify vehicle options and have VIN code in hand.
2. Perform "CLU Variant Coding" in the "Vehicle S/W Management  " with KDS/GDS.
3. Check for DTCs in the system.

   (Figure below) Cluster module variant coding.

4. Is the DTCs stored in the system as a present?

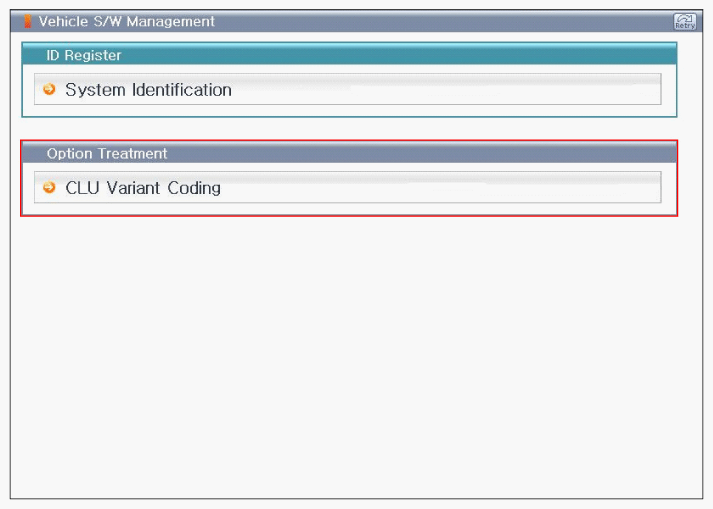

   Fig 1: Scantool Display - Vehicle S/W Management

   Courtesy of KIA MOTORS AMERICA, INC.

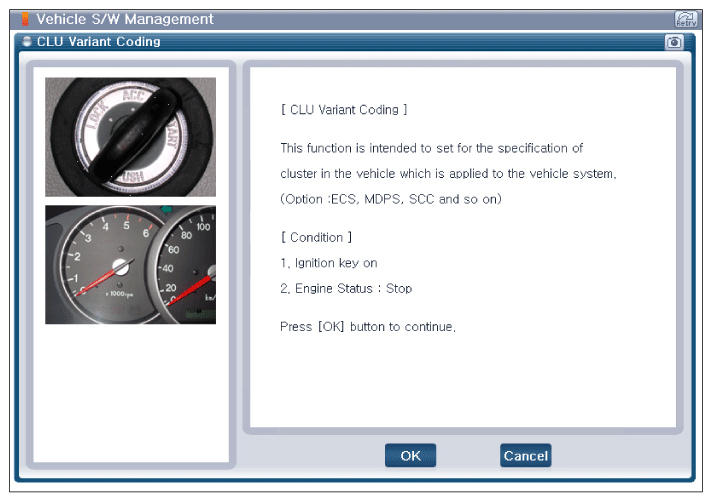

   Fig 2: Scantool Display - Cluster Module Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.

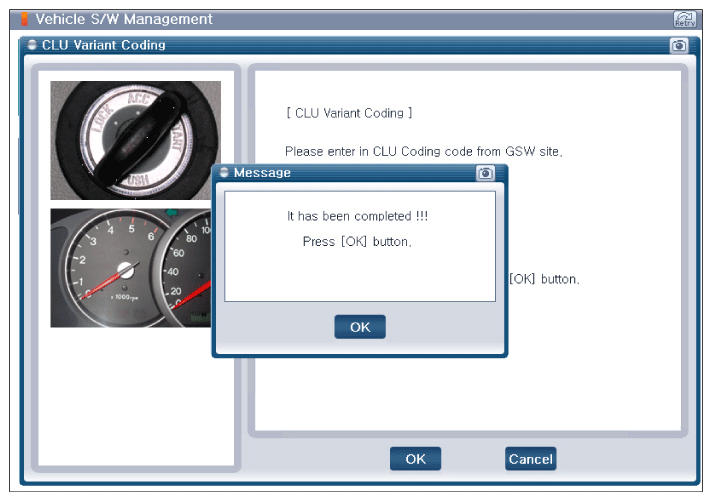

   Fig 3: Scantool Display - Cluster Module Variant Coding (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.

   YES

   • Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management  " with KDS/GDS again, and then, go to "Verification of Vehicle Repair " procedure.

   NO

   • Go to "Wiring Inspection " procedure.
