Signal Waveform & Data

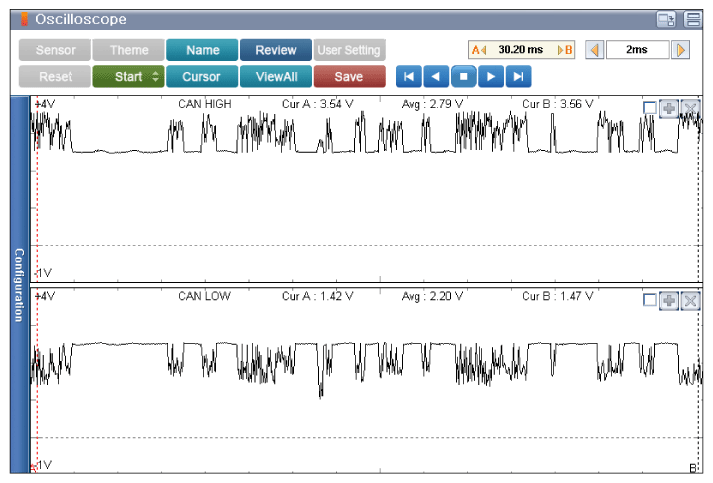

Fig 1: Scantool Display - C_CAN Low & High Signal Waveform
G12209543Courtesy of KIA MOTORS AMERICA, INC.

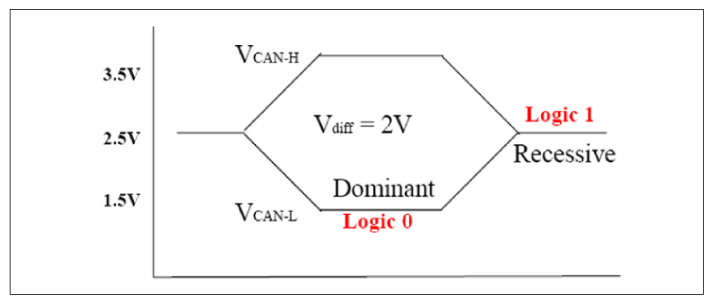

Fig 2: Scantool Display - C_CAN BUS Voltage Level (High Speed CAN)
G12209544Courtesy of KIA MOTORS AMERICA, INC.
