Transmission
>>
Transmission Control Systems
>>
Dual Clutch Transmission Control System - 1.6L T
>>
Input Speed Sensor 1
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

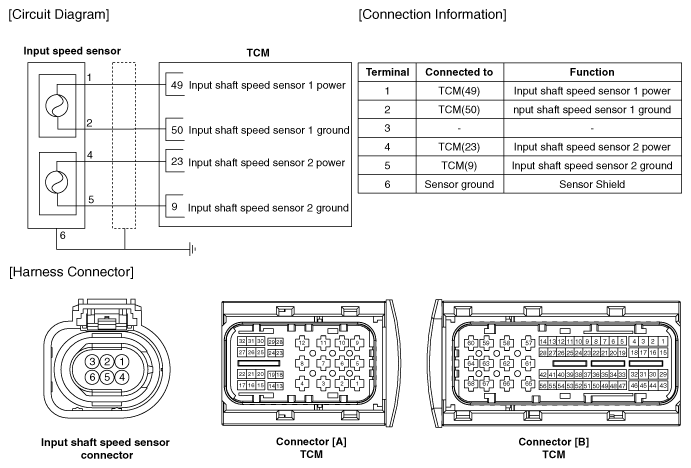

Fig 1: Input Speed Sensor 1 Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
