Circuit Diagram

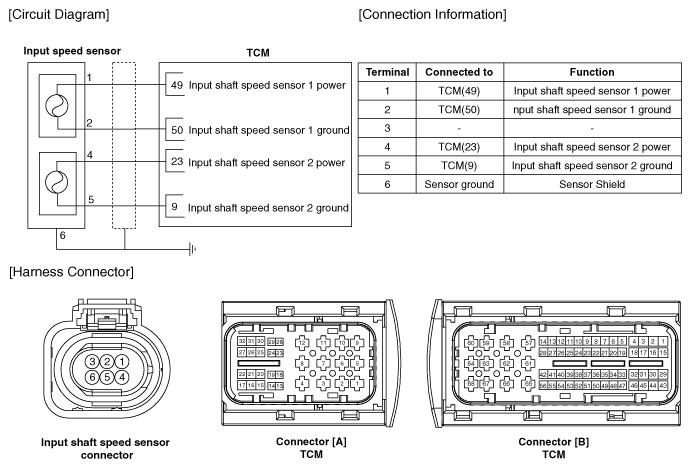

Fig 1: Input Speed Sensor 2 Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
