System Inspection

■ Resetting Adaptive Values

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Select the "Vehicle S/W Management  " for related DTC with KDS/GDS.

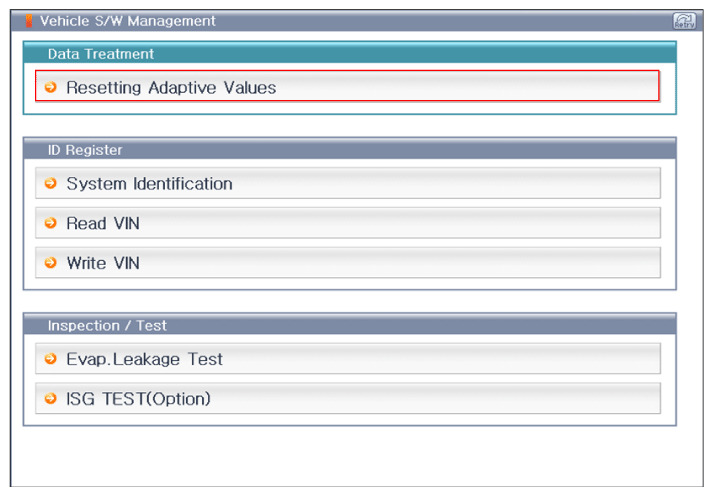

   Fig 1: Screen Display - Select Resetting Adaptive Values To Reset TPS Values

   Courtesy of KIA MOTORS AMERICA, INC.

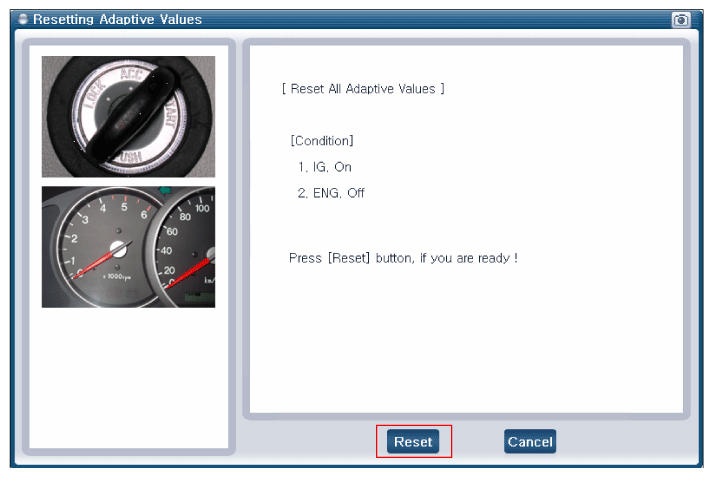

   Fig 2: Screen Display - Press Reset Button To Begin Resetting Procedure

   Courtesy of KIA MOTORS AMERICA, INC.

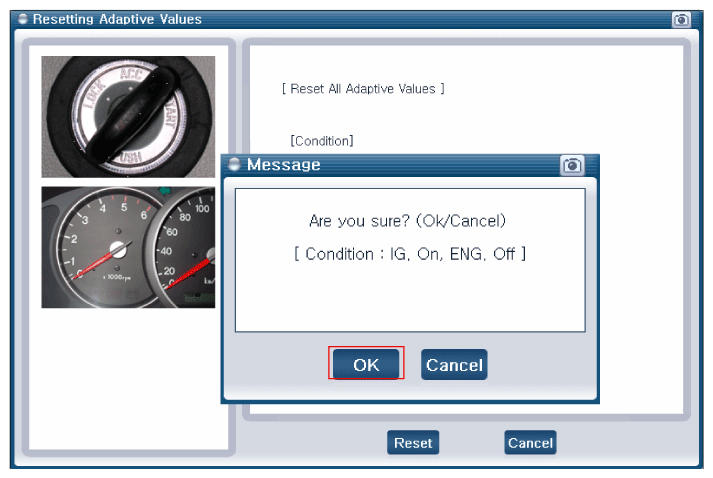

   Fig 3: Screen Display - Press OK Button (Ignition ON, Engine OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

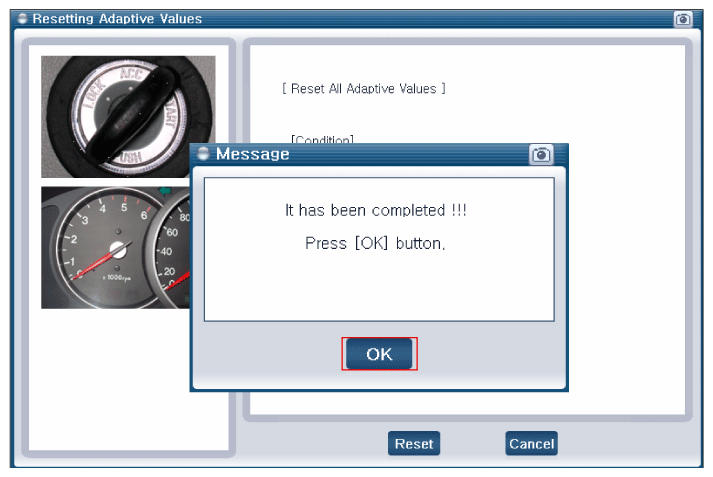

   Fig 4: Screen Display - Adaptive Values Resetting Complete

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "Verification of Vehicle Repair " procedure.
