System Inspection

■ Resetting Adaptive Values

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Select the "Vehicle S/W Management" for related DTC with KDS/GDS.
   Fig 1: Screen Display - Select Read VIN

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 2: Screen Display - Press OK Button (Ignition ON & Engine OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Screen Display - Read VIN Final Screen

   Courtesy of KIA MOTORS AMERICA, INC.

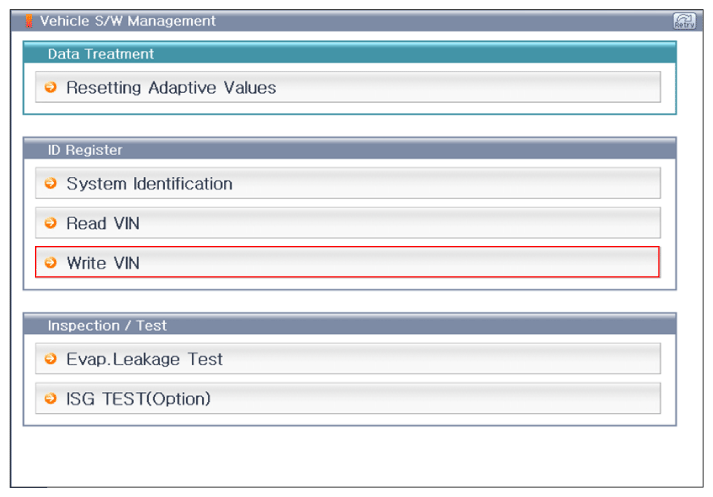

   Fig 4: Screen Display - Select Write VIN

   Courtesy of KIA MOTORS AMERICA, INC.

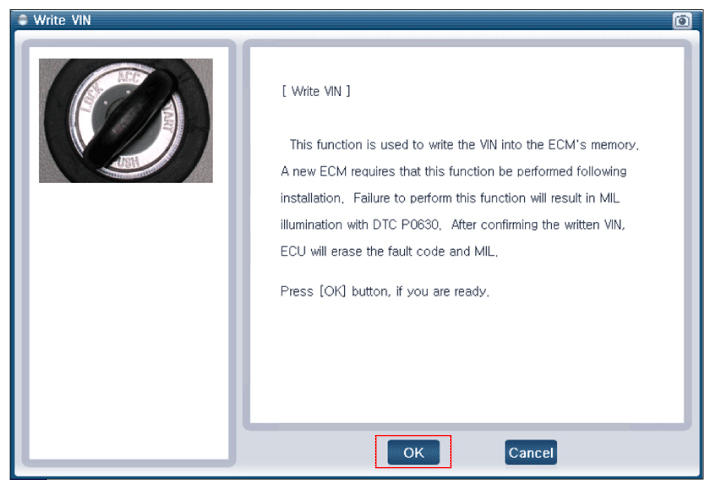

   Fig 5: Screen Display - Press OK Button (Ignition ON & Engine OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 6: Screen Display - White VIN Final Screen

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Read VIN" & "Write VIN" has completed properly, press "OK" button and go to "Verification of Vehicle Repair " procedure.
