Schematic Diagrams

Circuit Diagram

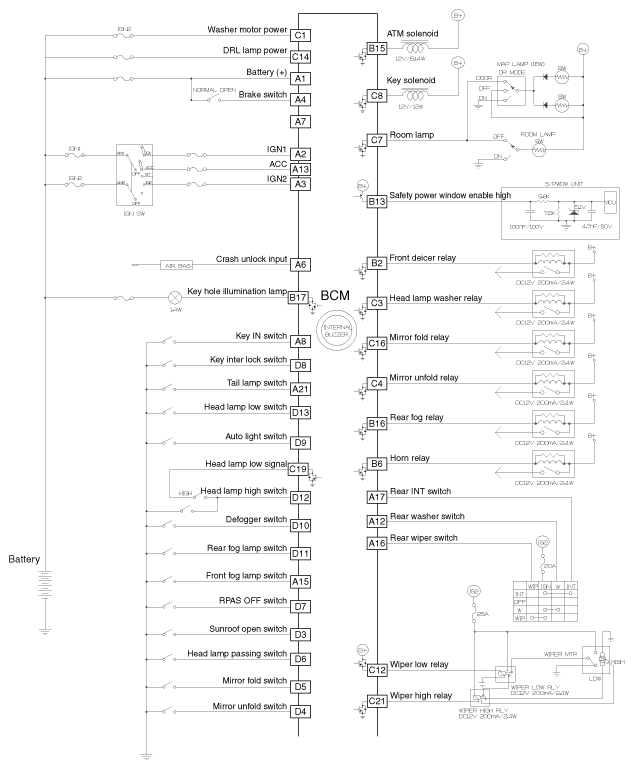

Fig 1: BCM Circuit Diagram (1 Of 2)
G12235331Courtesy of KIA MOTORS AMERICA, INC.

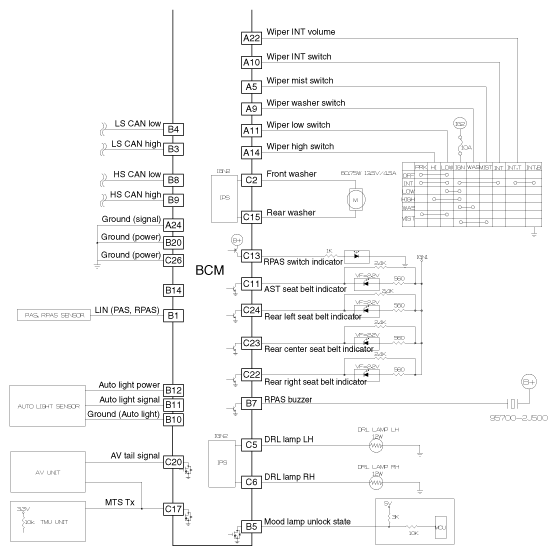

Fig 2: BCM Circuit Diagram (2 Of 2)
G12235332Courtesy of KIA MOTORS AMERICA, INC.
