Component Location

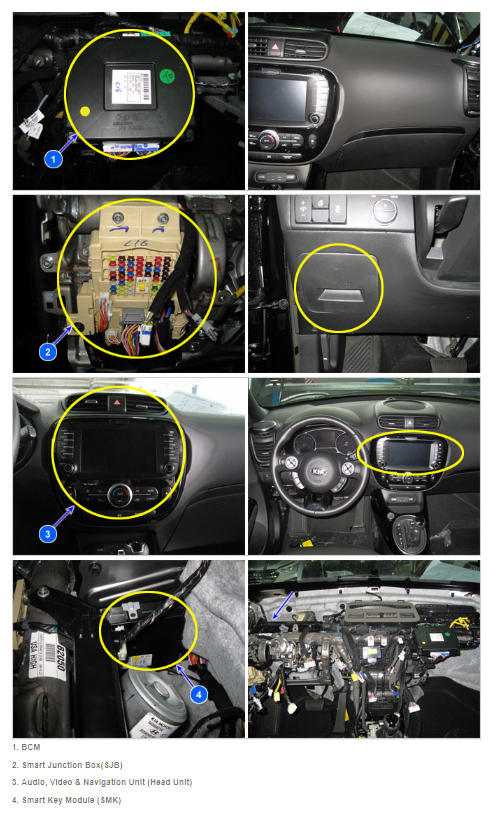

Fig 1: Locating BCM, Smart Junction Box, Audio, Video Or Navigation Unit (Head Unit) And Smart Key Module
G12209188Courtesy of KIA MOTORS AMERICA, INC.
