Terminal Function

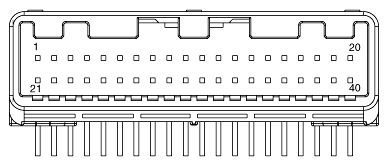

Fig 1: Smart Cruise Control (SCC) ECU Connector End View

G12394121

Courtesy of KIA MOTORS AMERICA, INC.

TERMINAL FUNCTION

NO.	Terminal function
1	L - CAN HIGH
2	L - CAN LOW
3	-
4	-
5	-
6	-
7	-
8	-
9	-
10	-
11	-
12	-
13	-
14	-
15	-
16	-
17	-
18	-
19	-
20	IGN1
21	GND
22	C - CAN HIGH
23	C - CAN LOW
24	-
25	-
26	-
27	-
28	-
29	-
30	-
31	-
32	-
33	-
34	-
35	-
36	-
37	-
38	-
39	-
40	-
