Components And Components Location: Components

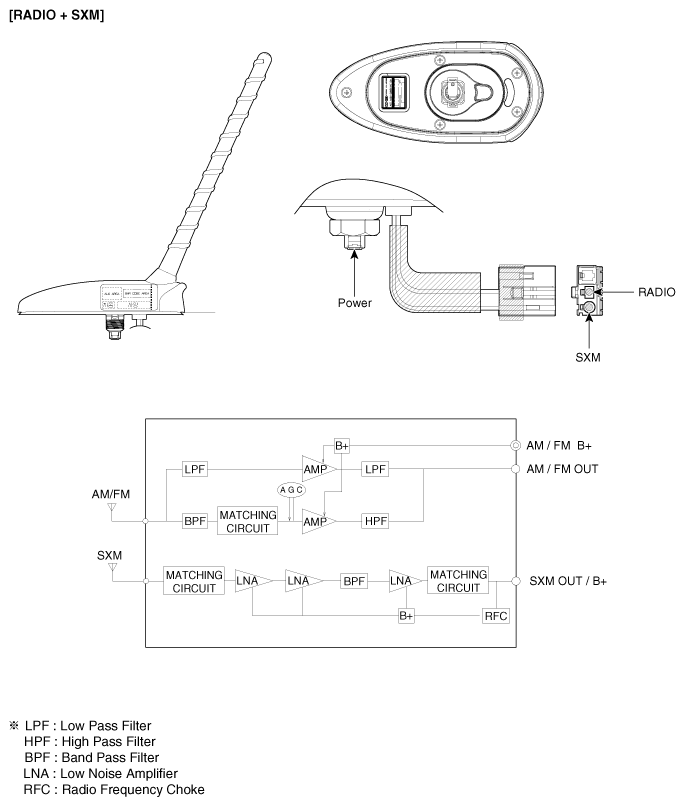

Fig 1: Antenna Circuit Diagram (1 Of 2)
G12235205Courtesy of KIA MOTORS AMERICA, INC.

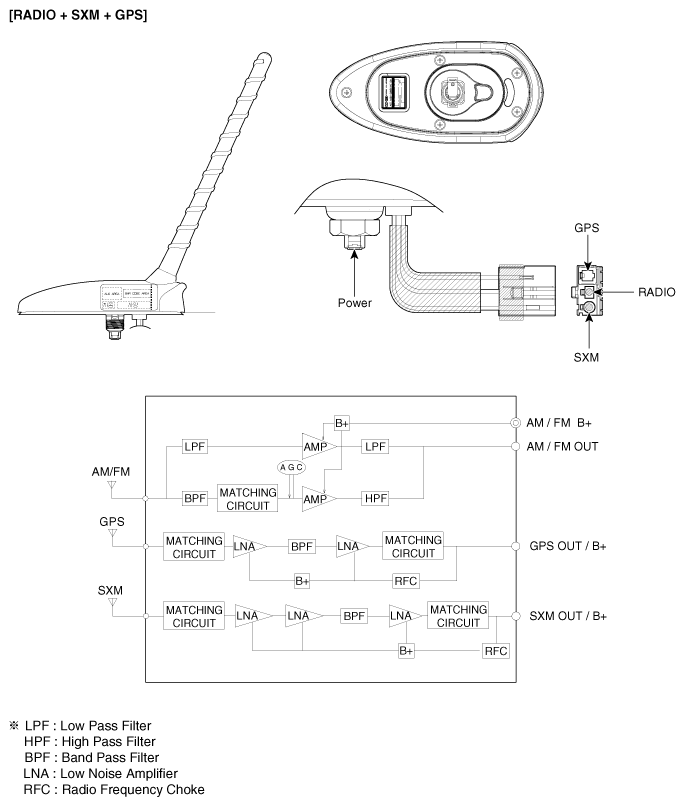

Fig 2: Antenna Circuit Diagram (2 Of 2)
G12235206Courtesy of KIA MOTORS AMERICA, INC.
