Components Location

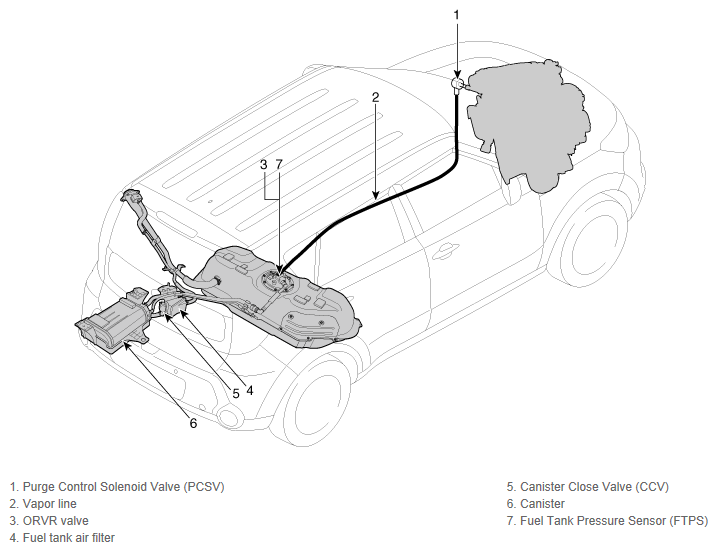

Fig 1: Evaporative Emission Control System Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
