Mode $06 Data Definitions For 2005-2006 Optima V6

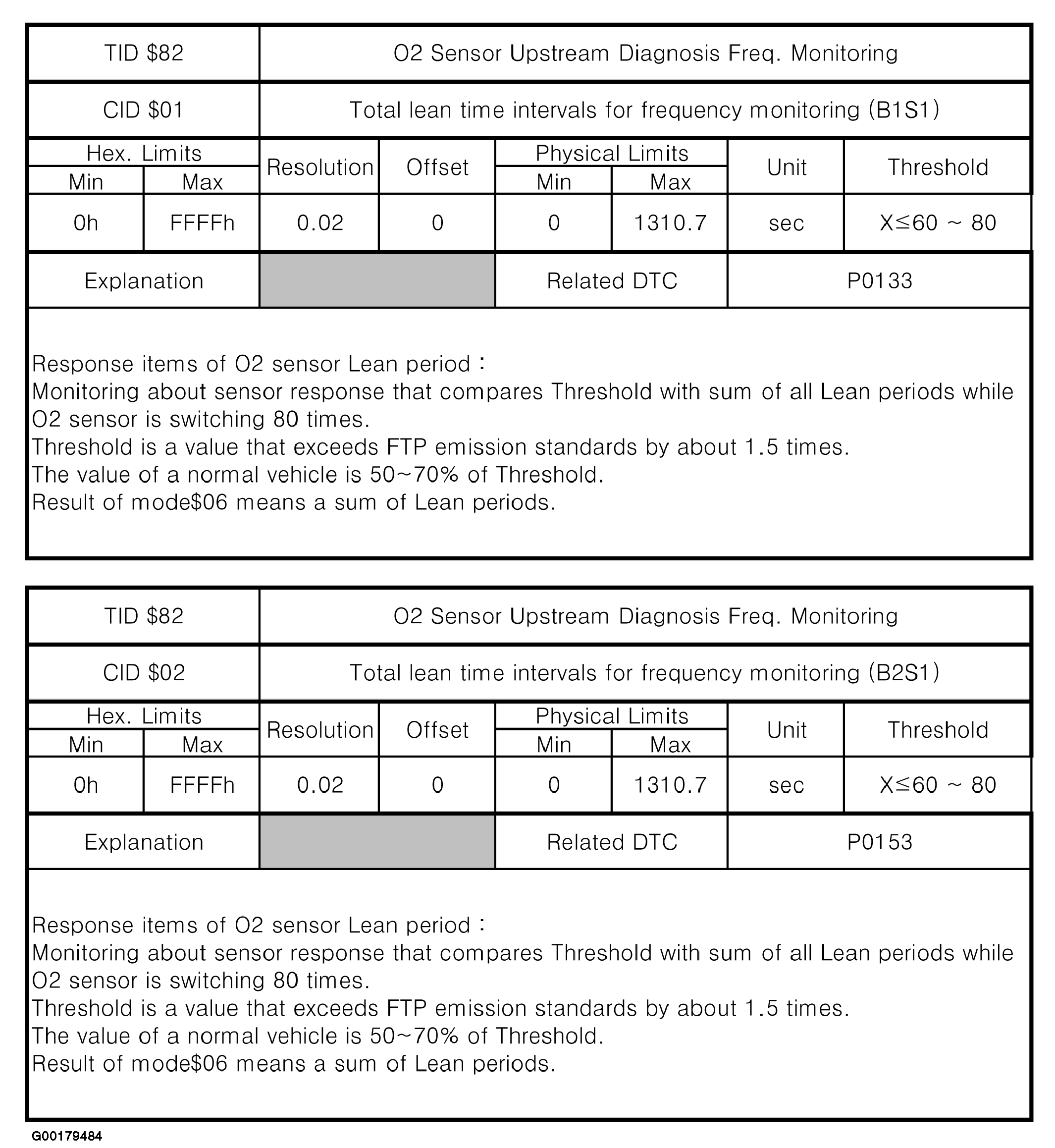

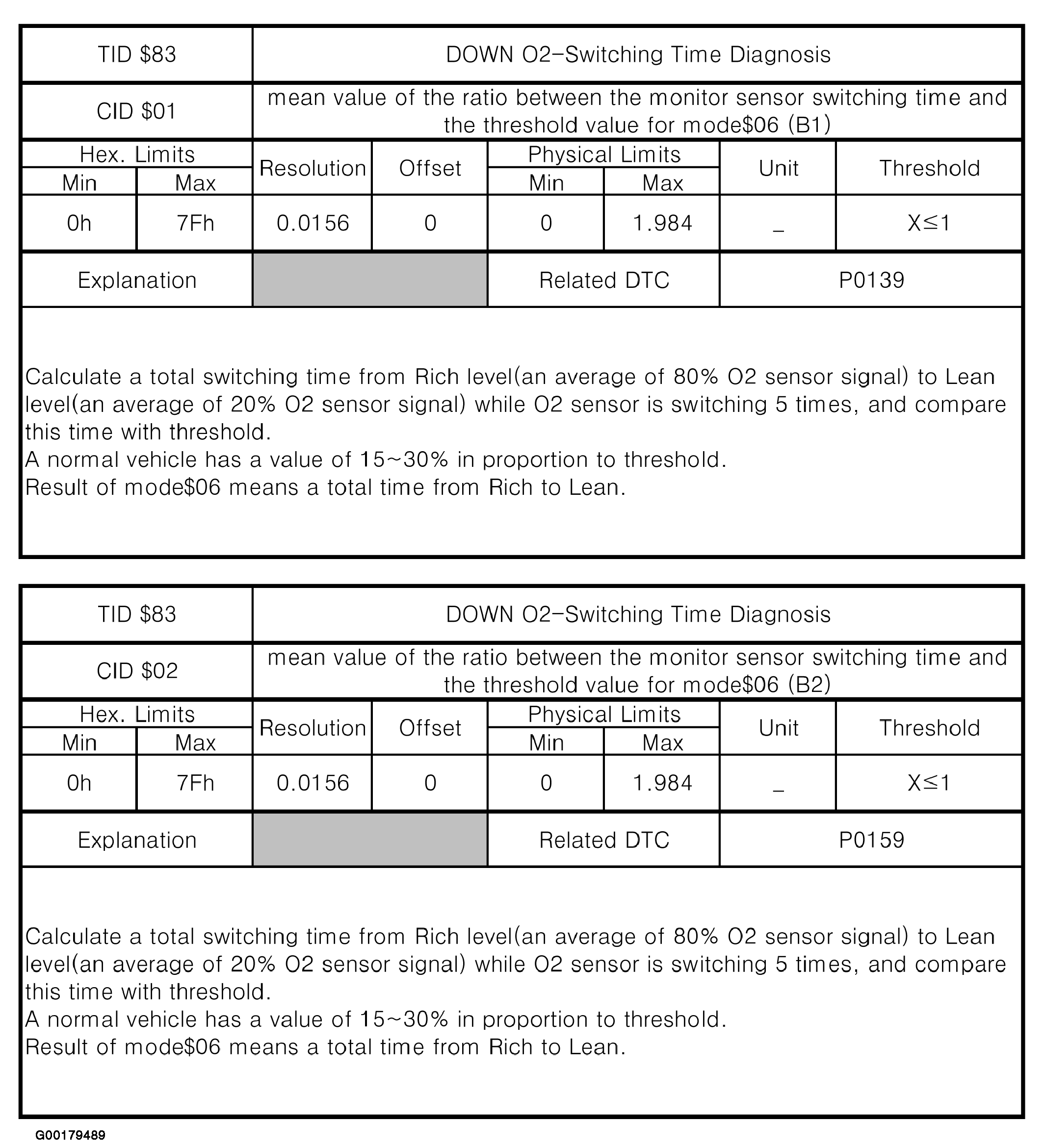

Fig 1: Mode $06 Test Information (1 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

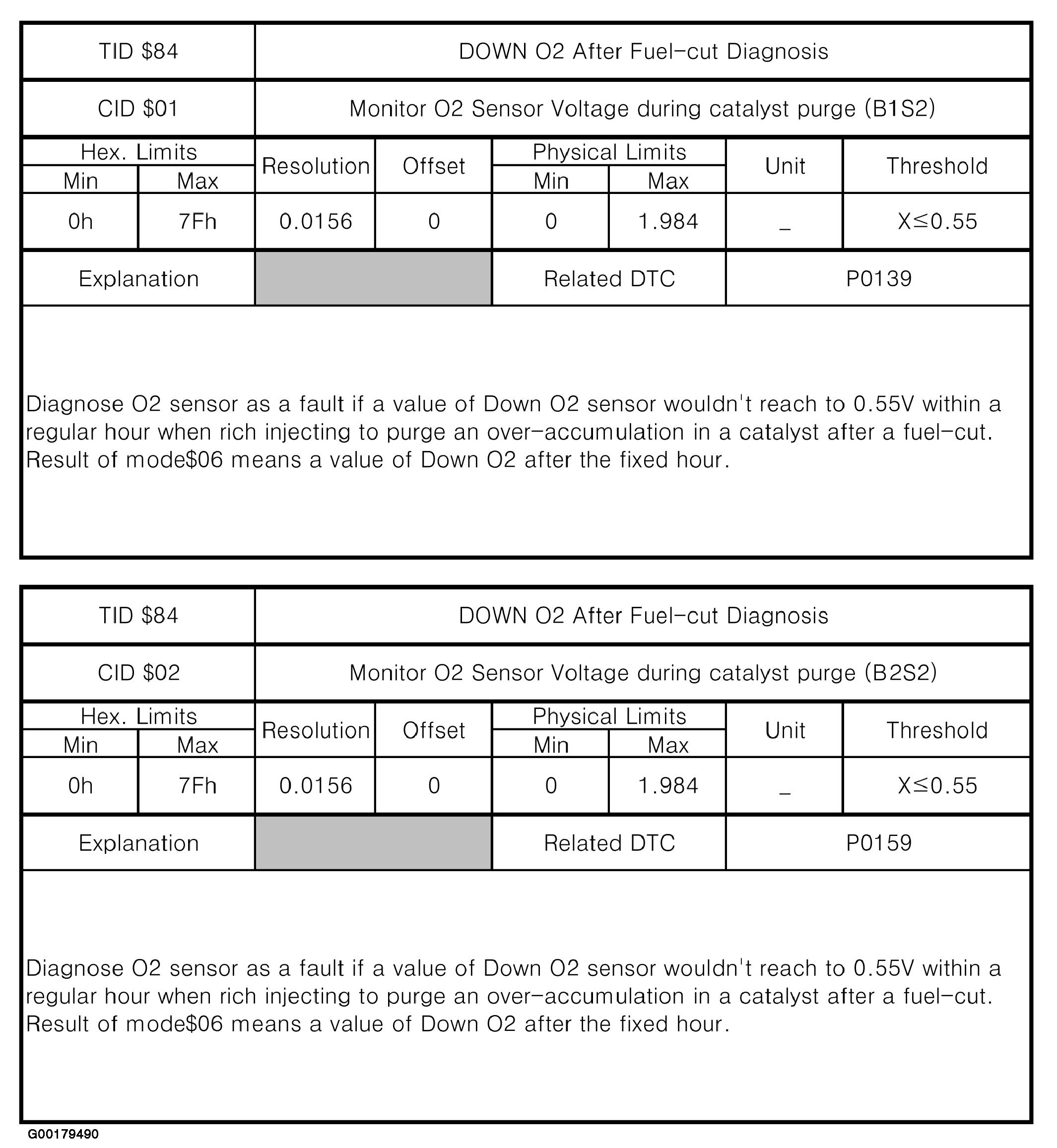

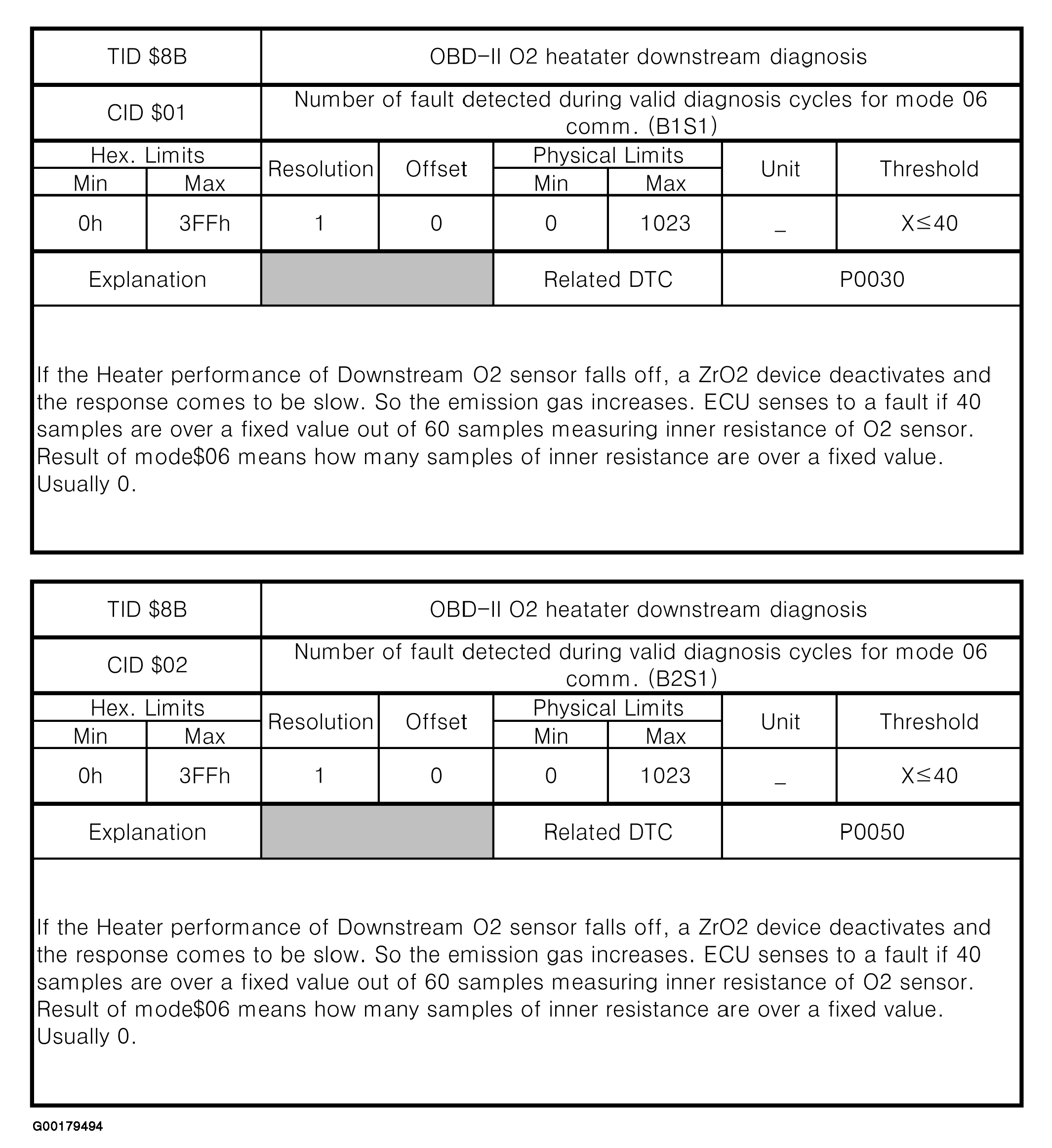

Fig 2: Mode $06 Test Information (2 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

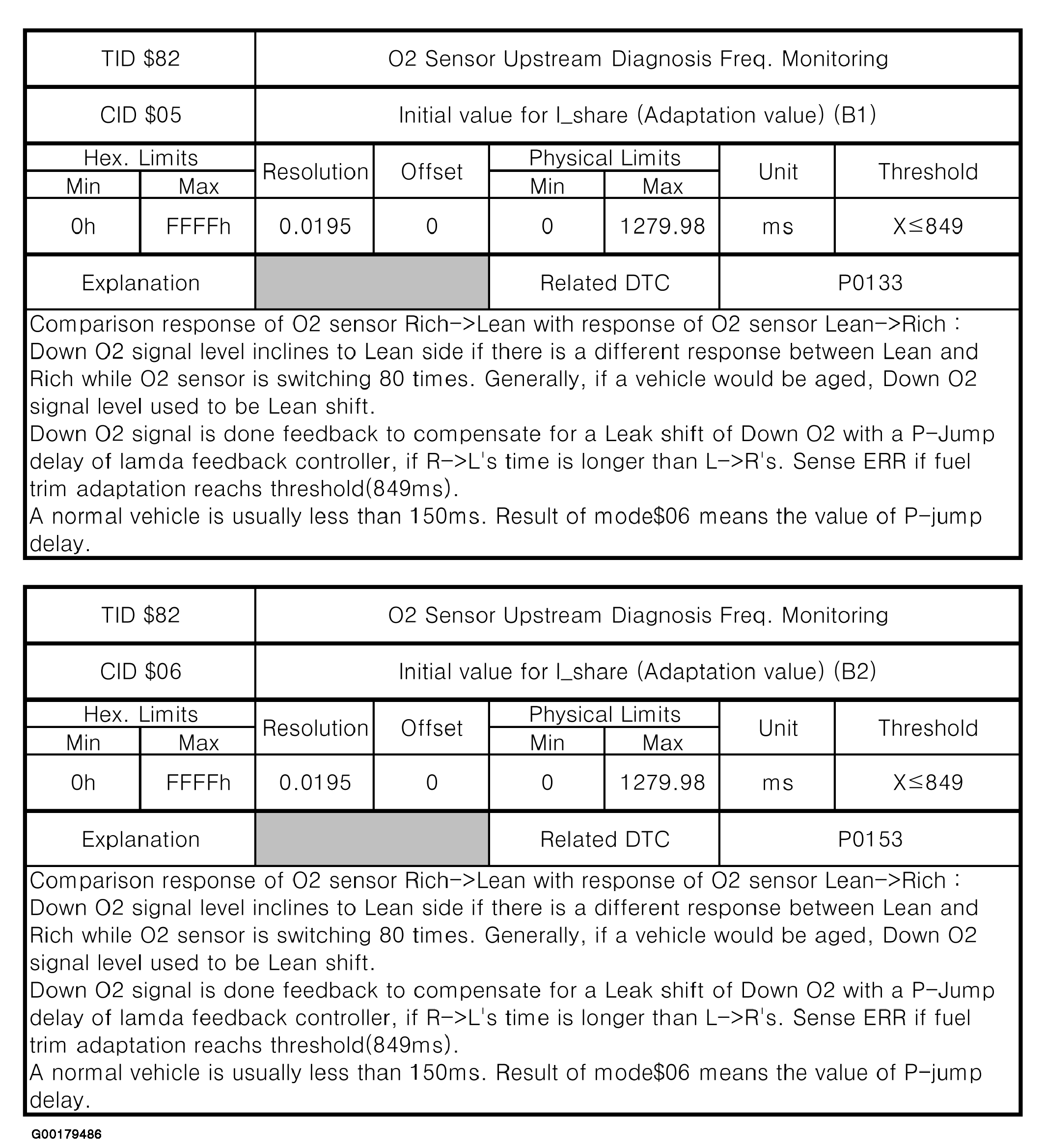

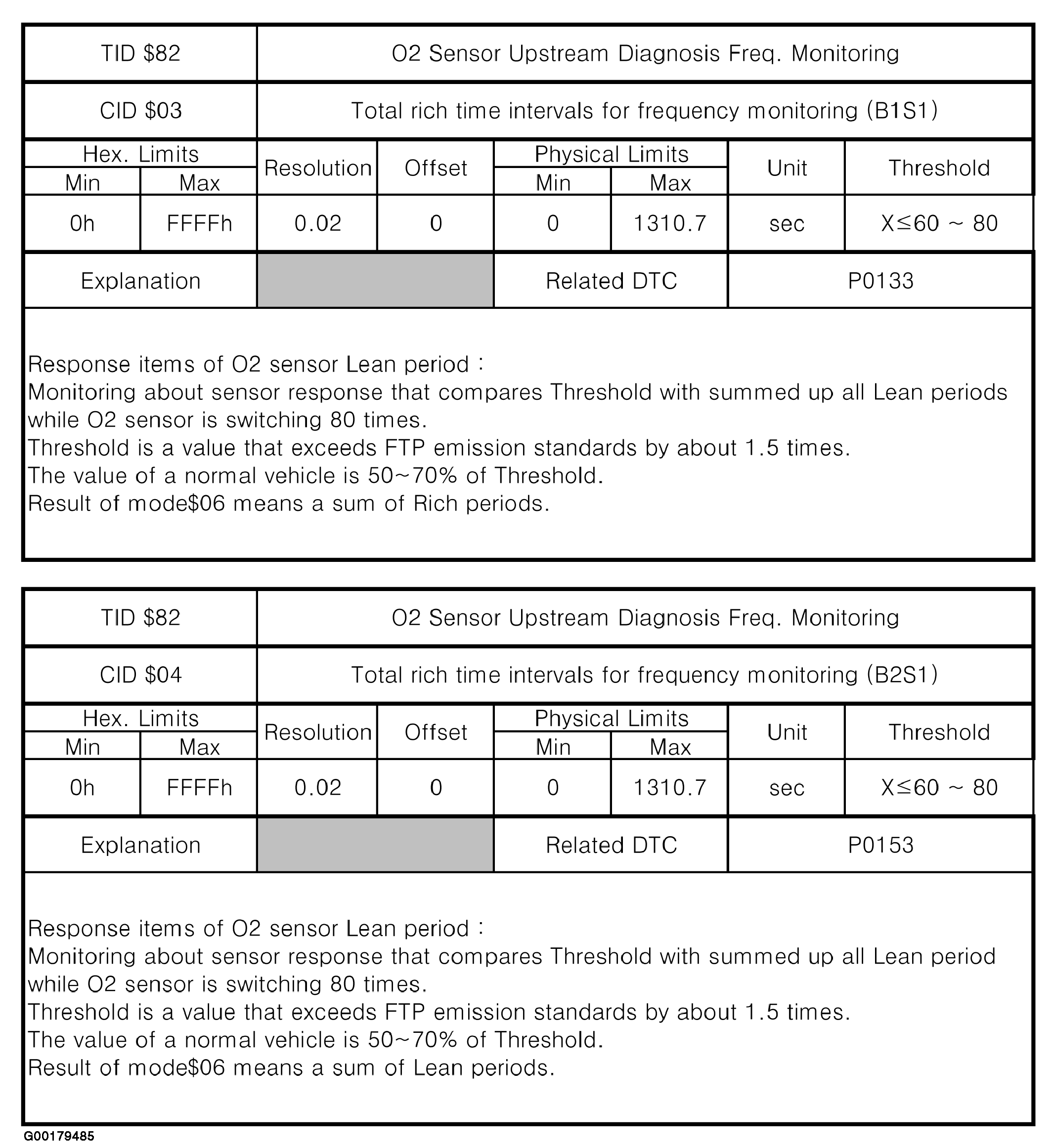

Fig 3: Mode $06 Test Information (3 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

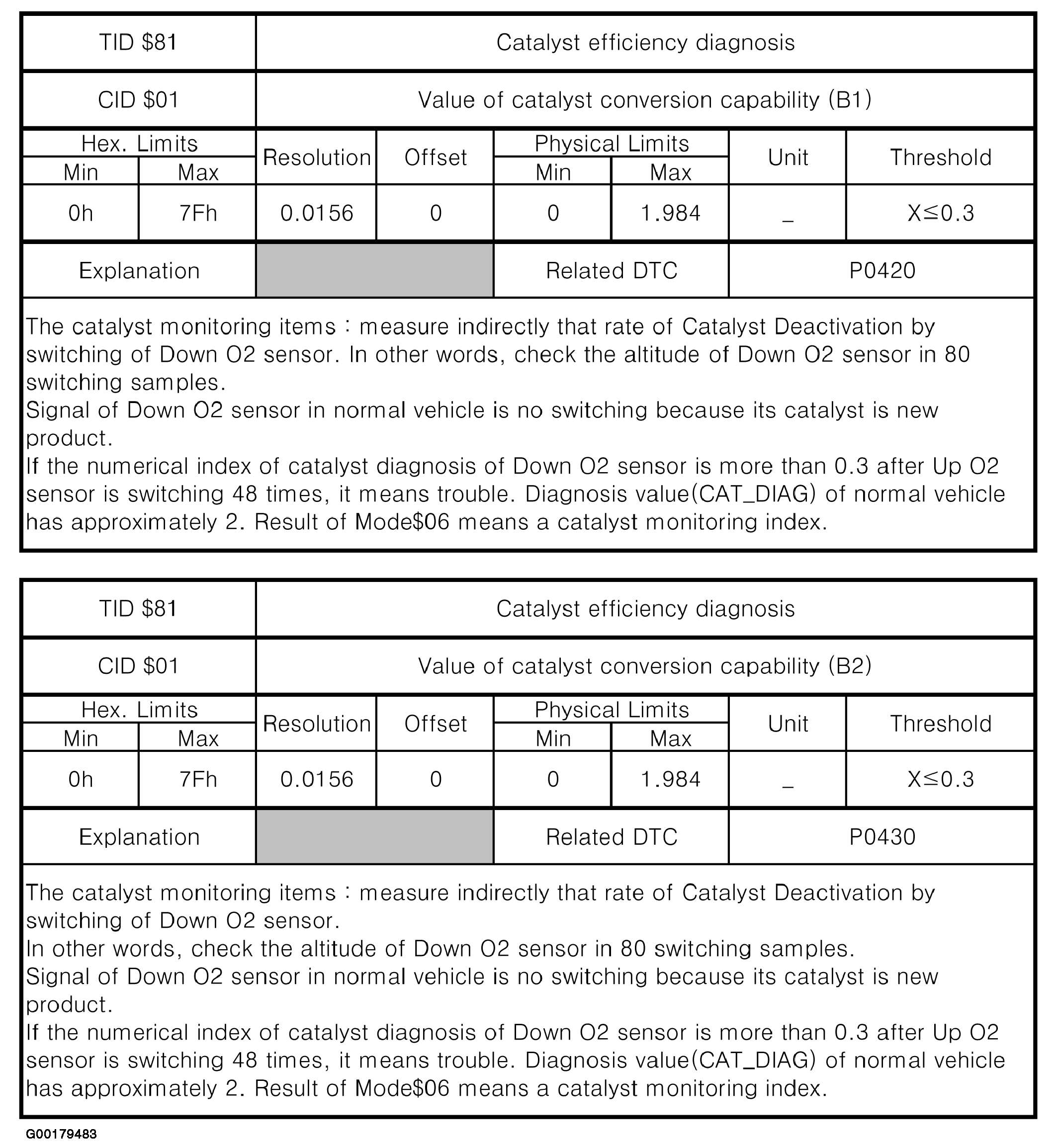

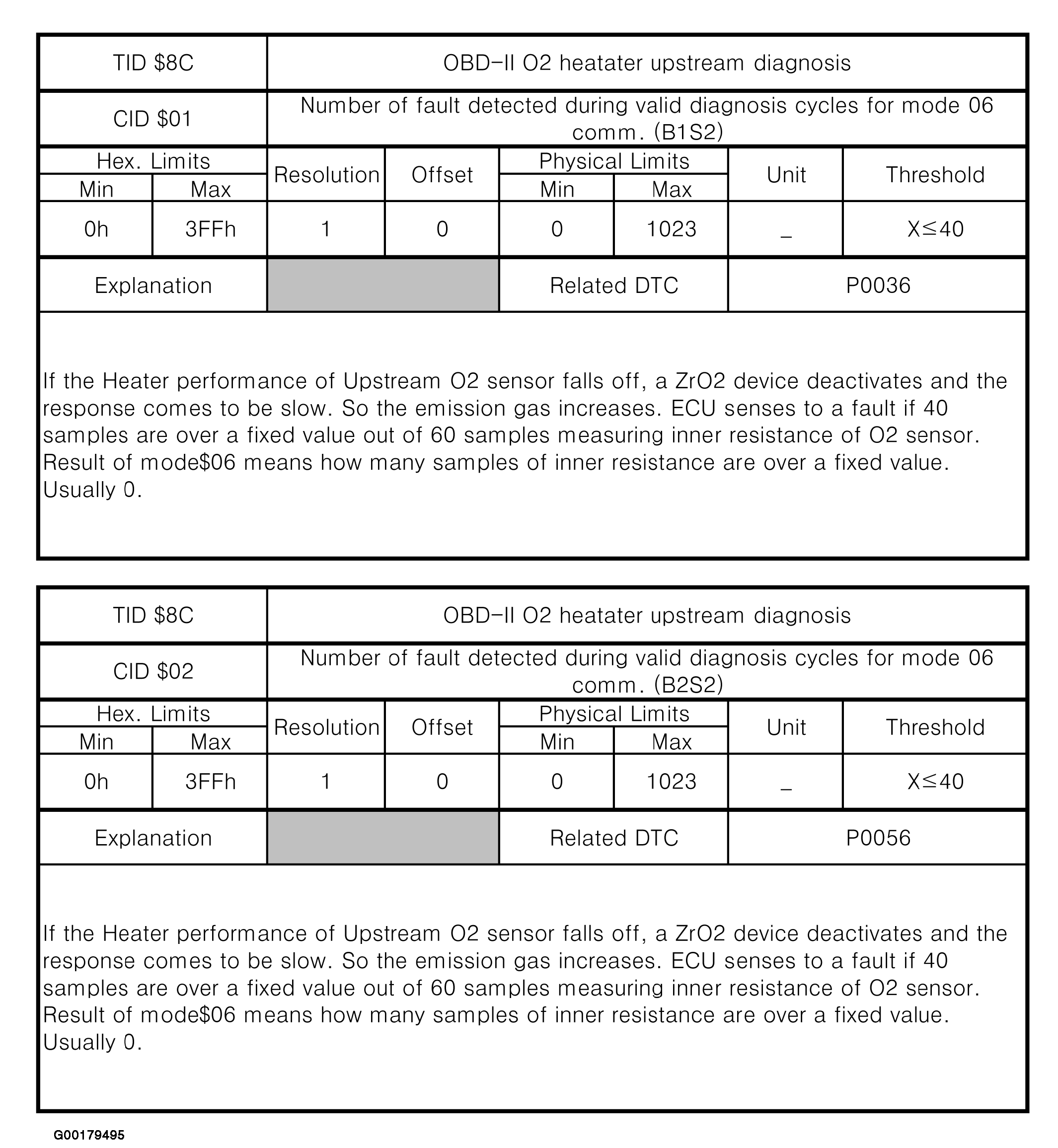

Fig 4: Mode $06 Test Information (4 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

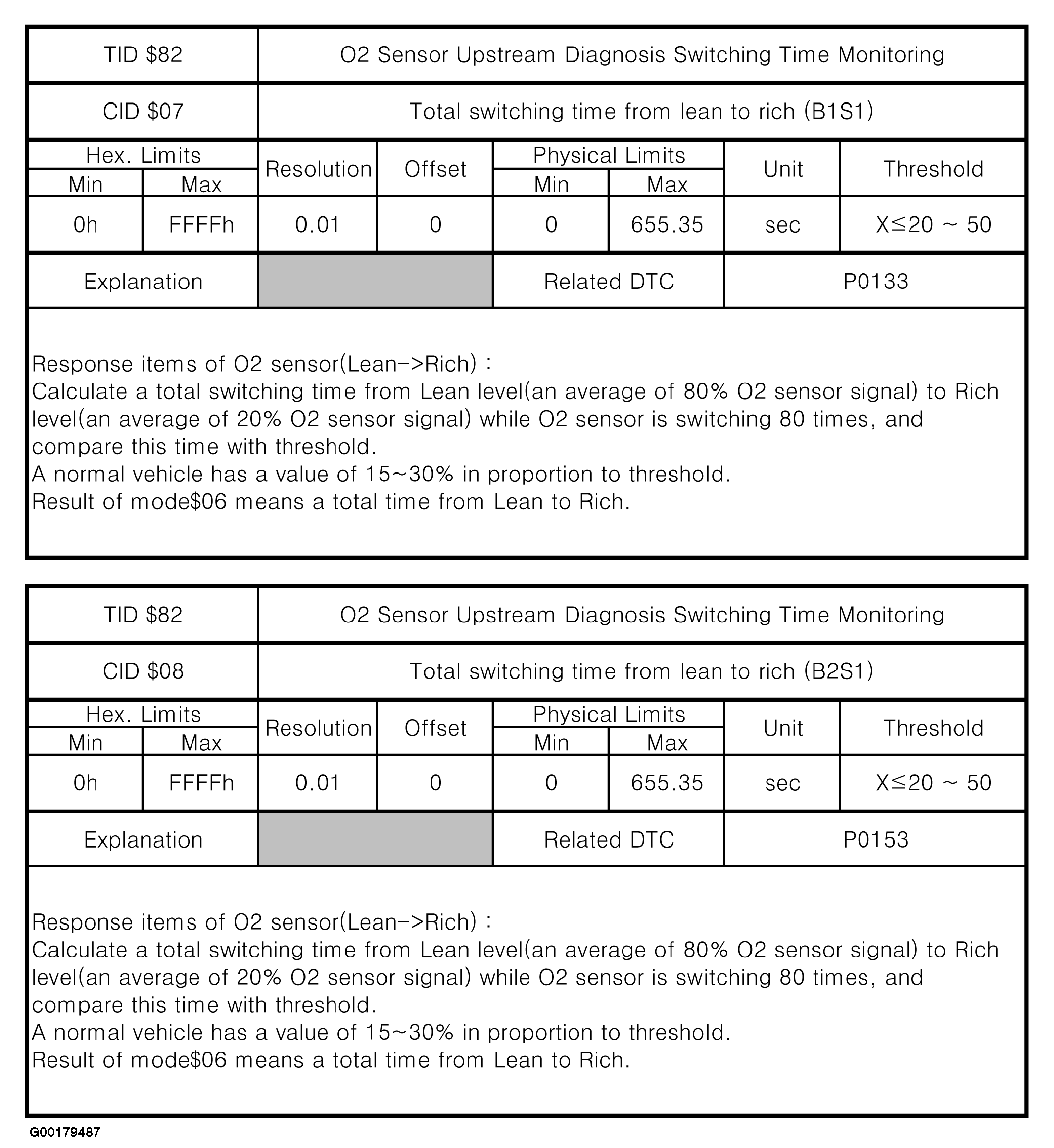

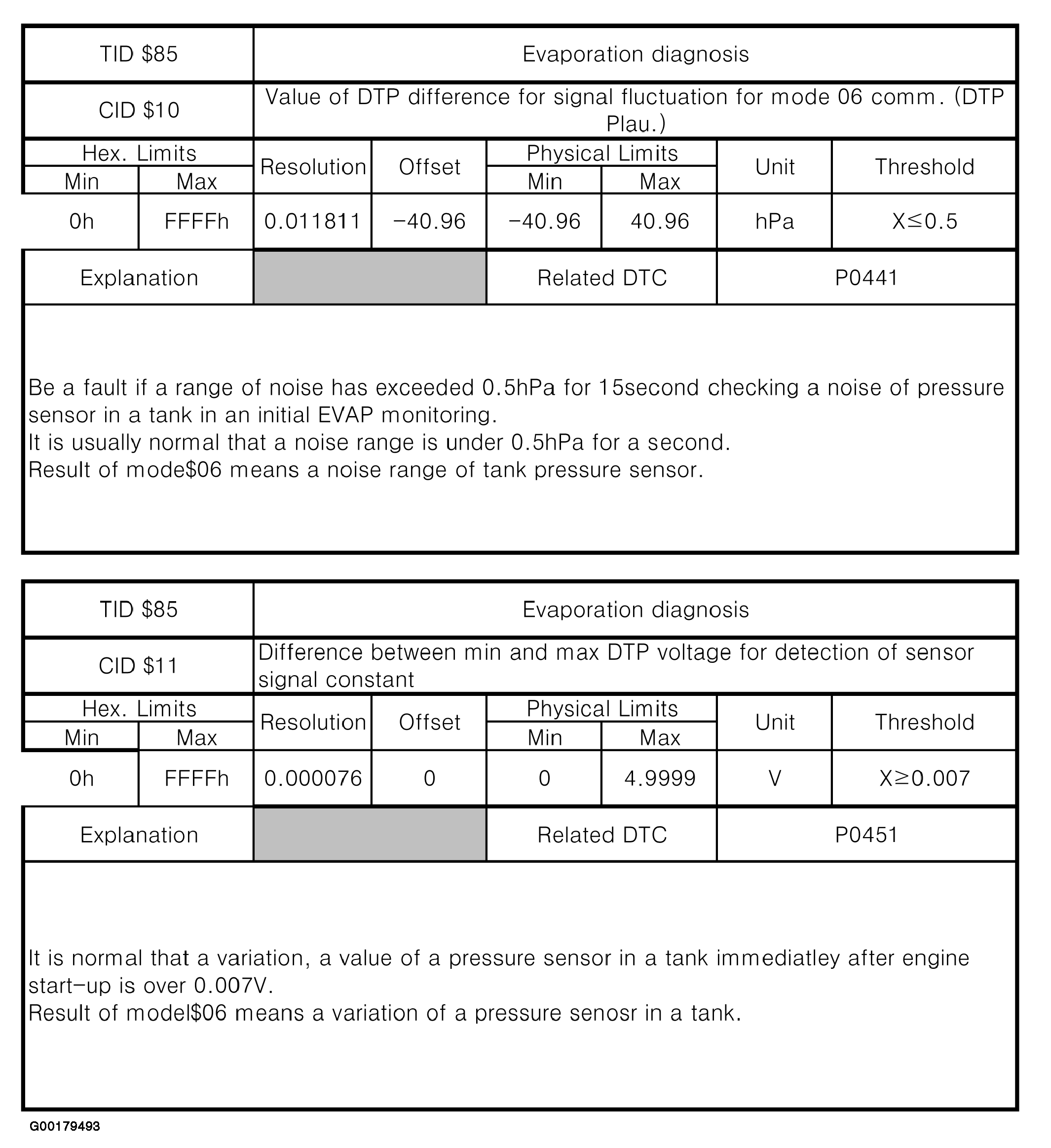

Fig 5: Mode $06 Test Information (5 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

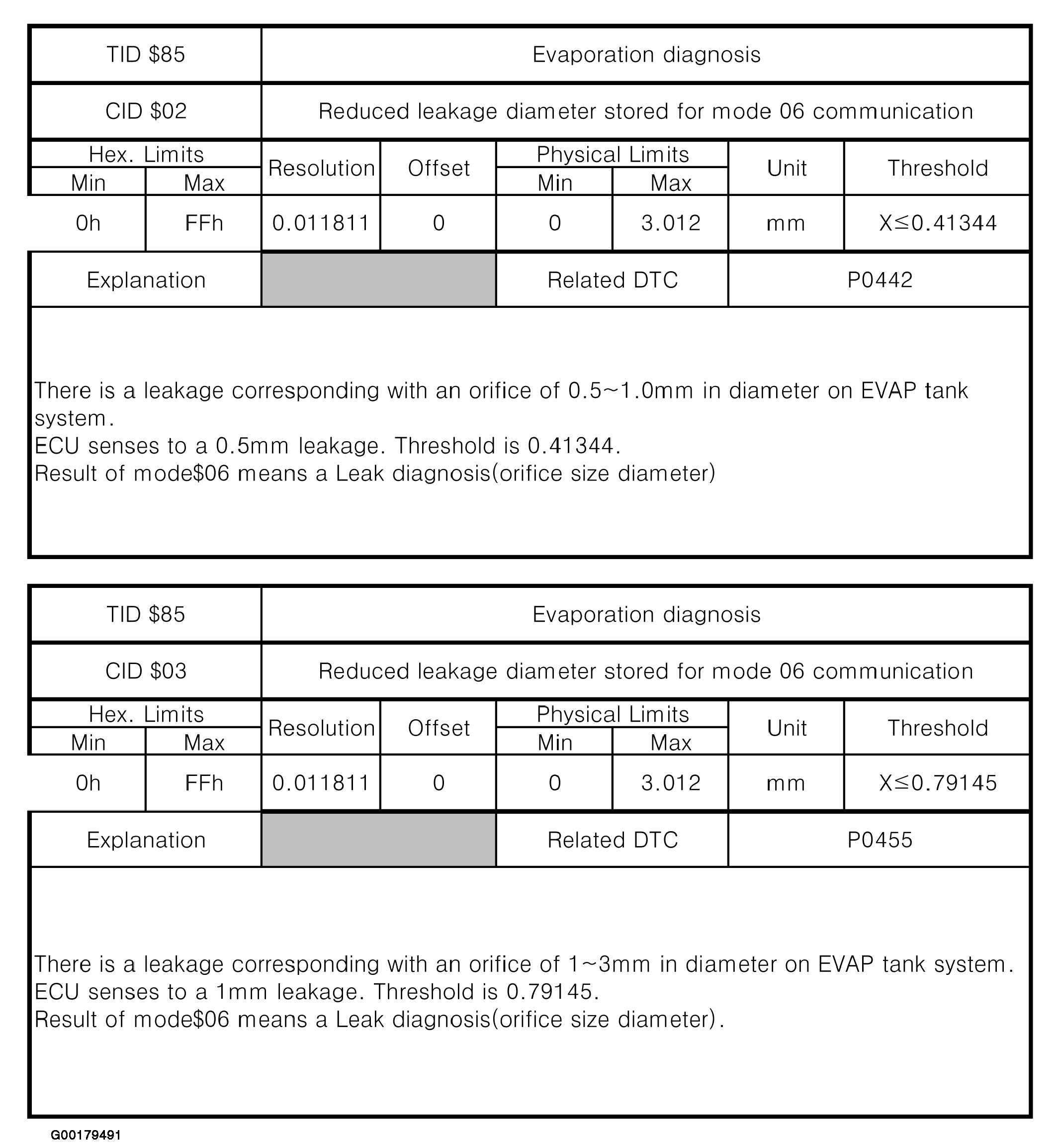

Fig 6: Mode $06 Test Information (6 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

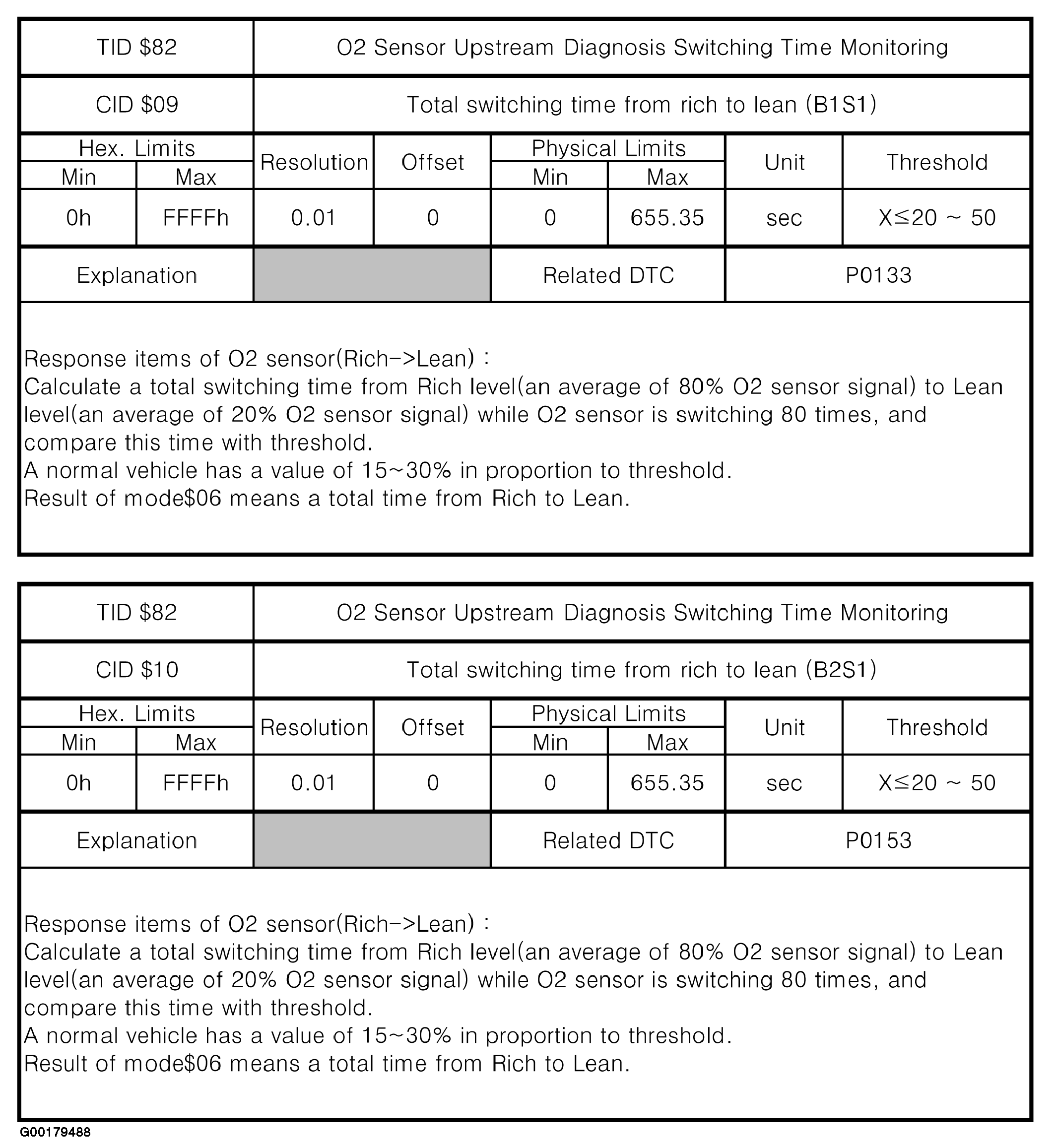

Fig 7: Mode $06 Test Information (7 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

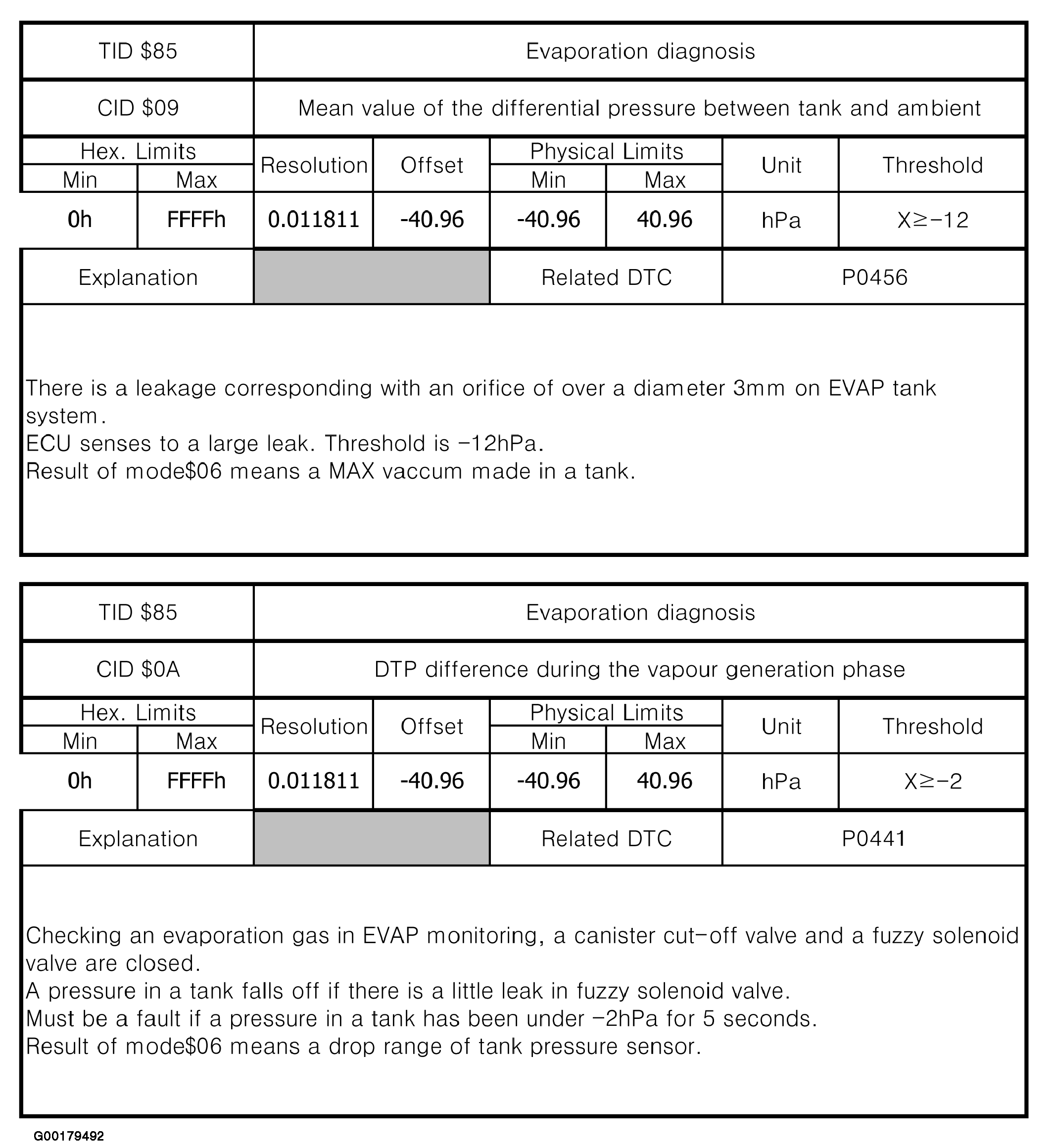

Fig 8: Mode $06 Test Information (8 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Mode $06 Test Information (9 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Mode $06 Test Information (10 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Mode $06 Test Information (11 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Mode $06 Test Information (12 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 13: Mode $06 Test Information (13 Of 13)

Courtesy of KIA MOTORS AMERICA, INC.
