Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

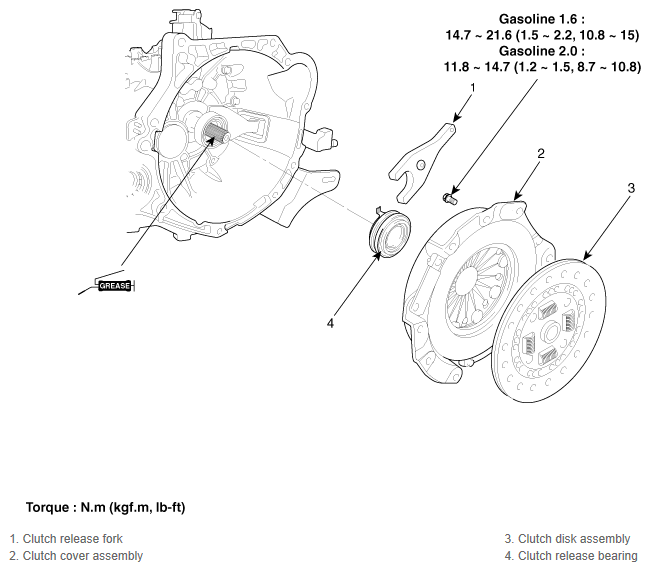

Fig 1: Clutch Cover And Disc Components Location With Torque Specification
G12227404Courtesy of KIA MOTORS AMERICA, INC.
