Monitor KDS/GDS Data

Ignition switch "OFF"
Connect KDS/GDS to Data Link Connector (DLC).
Ignition switch "ON" & Engine "ON"
Monitor "Country Code", "Left/Right hand drive", "Vehicle transmission type" and "Vehicle Model" parameters in "Current Data with KDS/GDS.
Specification: Refer to figure below

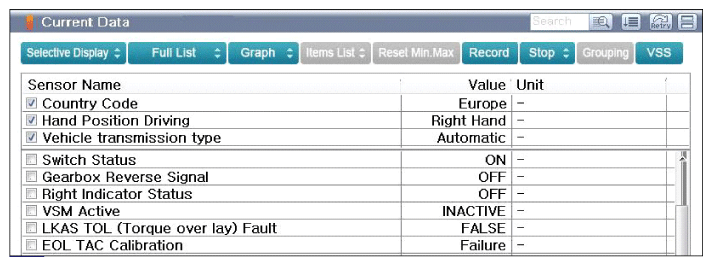

Fig 1: Scantool Display - LDWS Variant Coding Related Current Data
Courtesy of KIA MOTORS AMERICA, INC.
Is the parameter displayed within specification?
YES
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
NO
- Go to "Wiring Inspection " procedure.
