Components And Components Location: Components

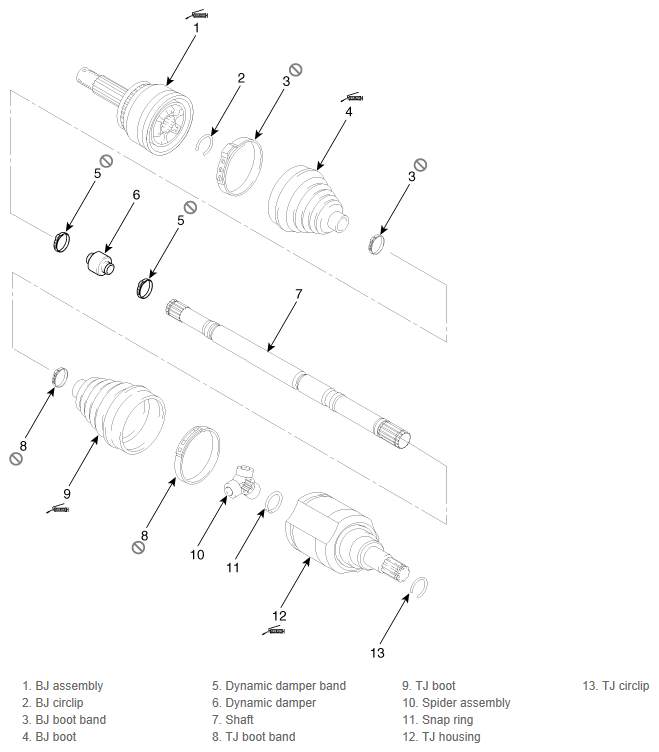

Fig 1: Exploded View Of Dynamic Damper
G12227793Courtesy of KIA MOTORS AMERICA, INC.
