System Inspection

■ Resetting Adaptive Values

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".

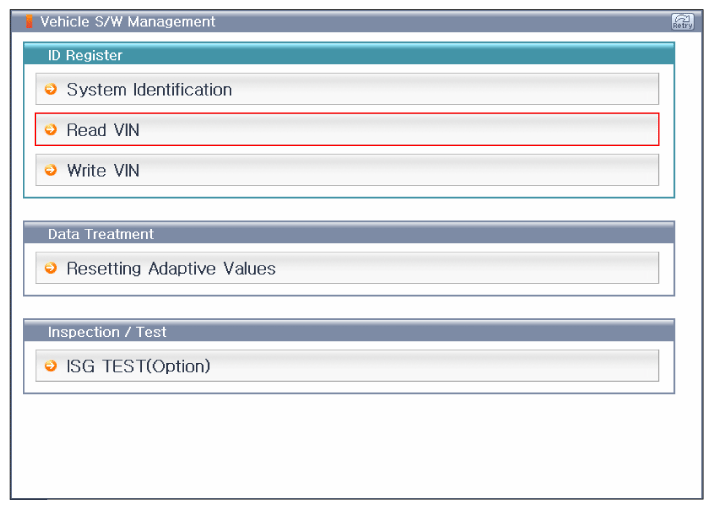

3. Select the "Vehicle S/W Management  " about related DTC with KDS/GDS.

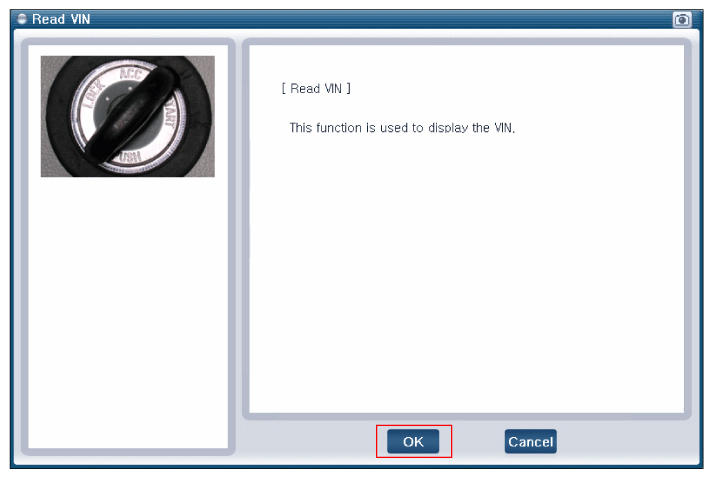

   Fig 1: Scantool Display - Read VIN 1

   Courtesy of KIA MOTORS AMERICA, INC.

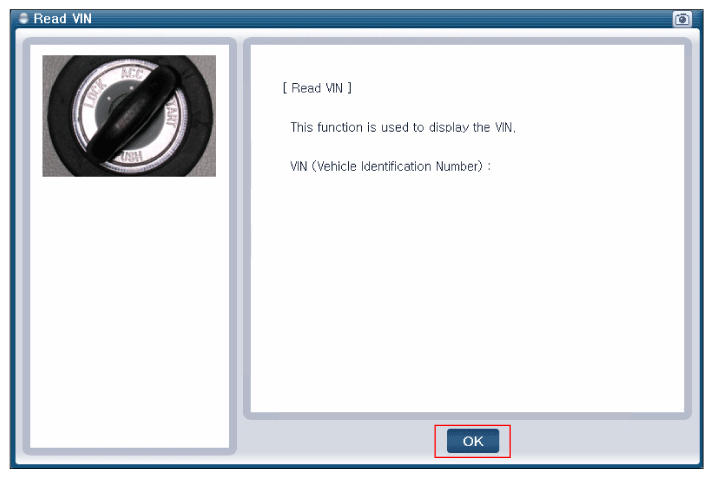

   Fig 2: Scantool Display - Read VIN 2

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Scantool Display - Write VIN 1

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 4: Scantool Display - Write VIN 2 (1 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.

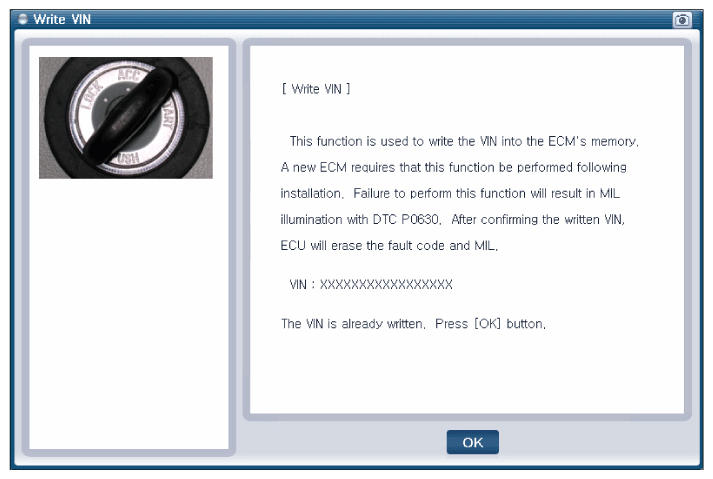

   Fig 5: Scantool Display - Write VIN 2 (2 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.

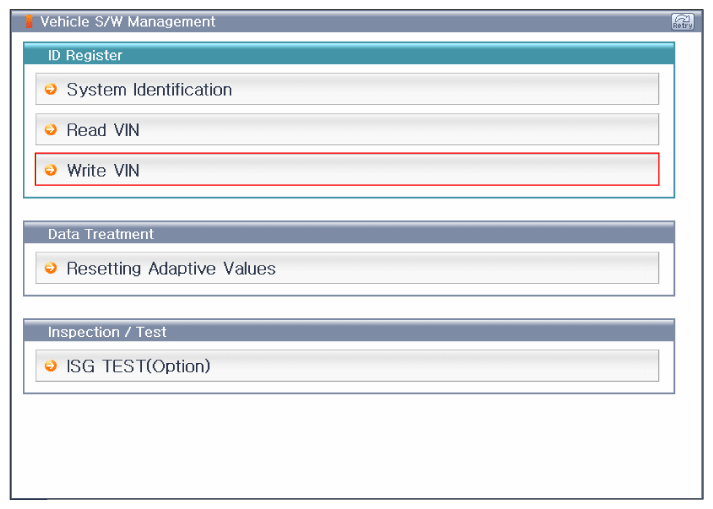

   Fig 6: Scantool Display - Selecting Write VIN

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 7: Scantool Display - Pressing OK Button For Ready (IG ON, ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 8: Scantool Display - Pressing OK Button For Start (IG ON, ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 9: Scantool Display - Write VIN Number

   Courtesy of KIA MOTORS AMERICA, INC.

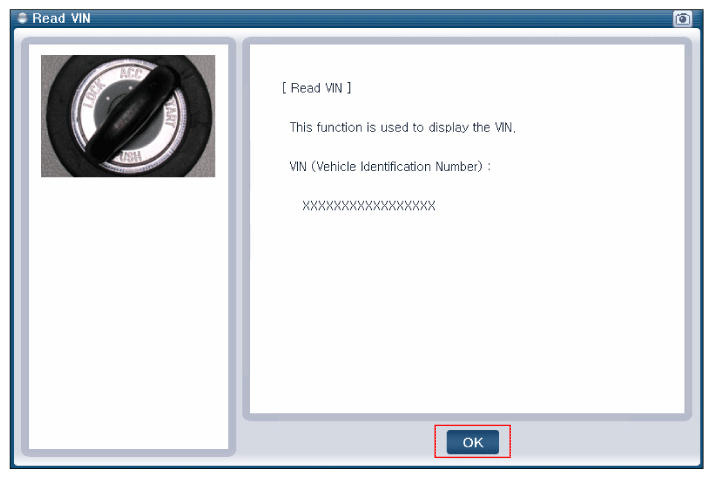

   Fig 10: Scantool Display - Checking VIN Number (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Read VIN" & "Write VIN" has completed properly, press "OK" button and go to "Verification of Vehicle Repair " procedure.
