Components And Components Location: Components

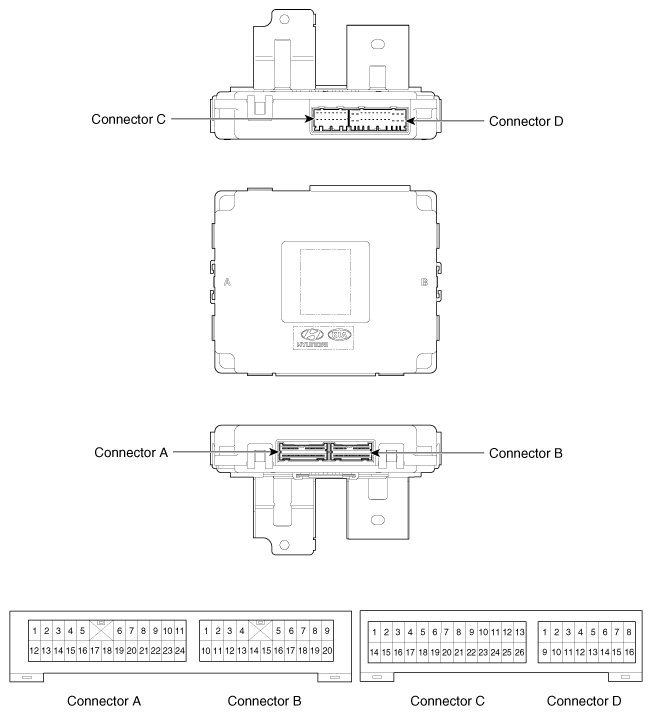

Fig 1: Locate Body Control Module Connector Terminals
G11934664Courtesy of KIA MOTORS AMERICA, INC.
