Components And Components Location: Components

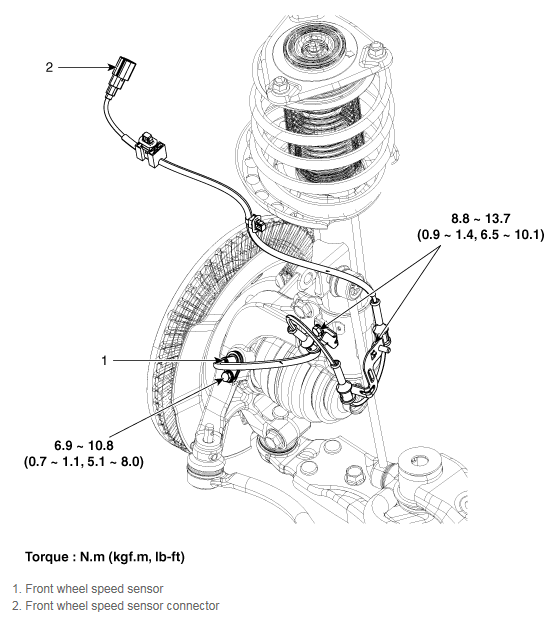

Fig 1: Locating Front Wheel Speed Sensor Component With Torque Specification
G11933929Courtesy of KIA MOTORS AMERICA, INC.
