Repair Procedures: Disassembly

  1. Loosen the screw (A-6ea) and then remove the lower cover (B) from the steering wheel body.
    G12818277Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the wiring (A) & Heated unit (B).
    G12818278Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the remote control upper switch assembly (A) and wiring.
    G12818279Courtesy of KIA MOTORS AMERICA, INC.

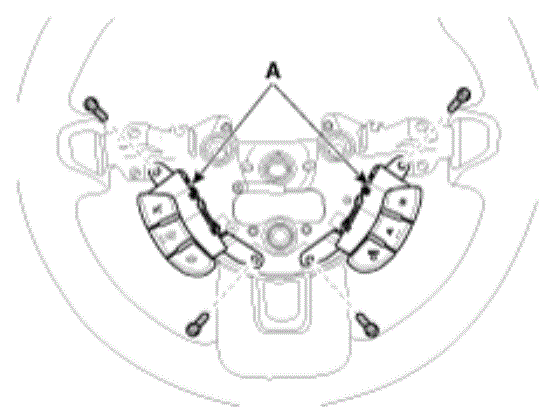

  4. Loosen the screw and then remote control switch assembly (A).
    G12818280Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of the removal.
