Power Trunk Module (PTM)

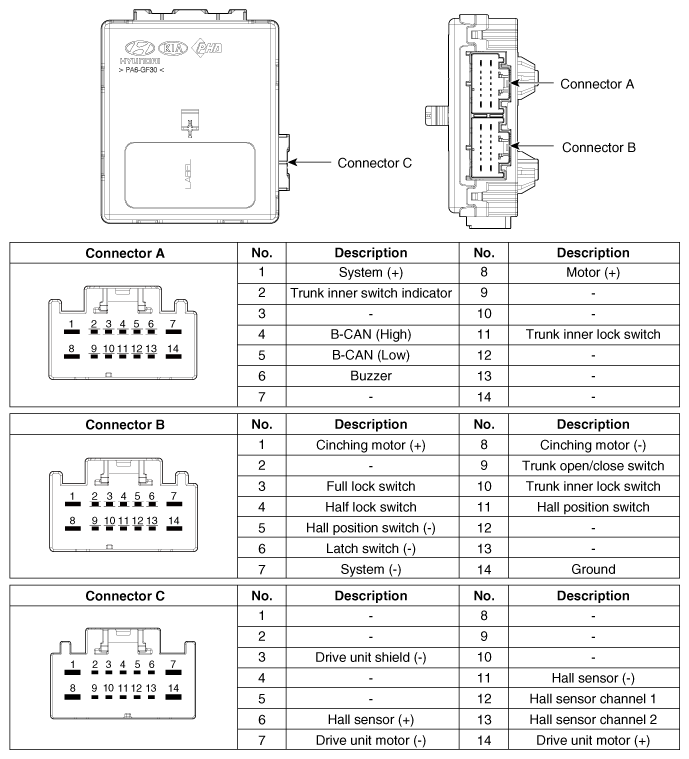

Fig 1: Locating Power Trunk Module (PTM) With Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
