Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ")

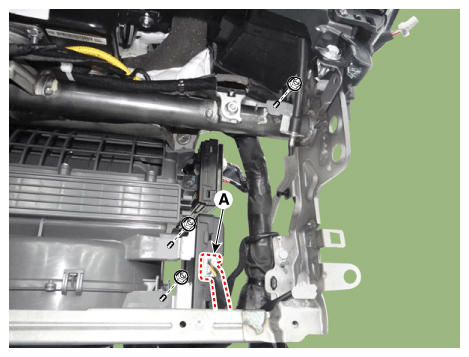

Disconnect the body control module connector (A) after loosening the mounting nuts.

Fig 1: Locating BCM Connector With Nuts
Courtesy of KIA MOTORS AMERICA, INC.

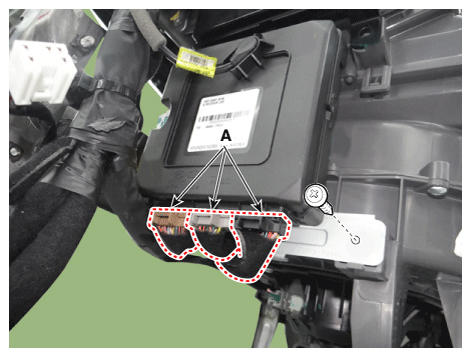

Disconnect the body control module connectors (A) after loosening the mounting screw.

Fig 2: Locating BCM Connectors
Courtesy of KIA MOTORS AMERICA, INC.

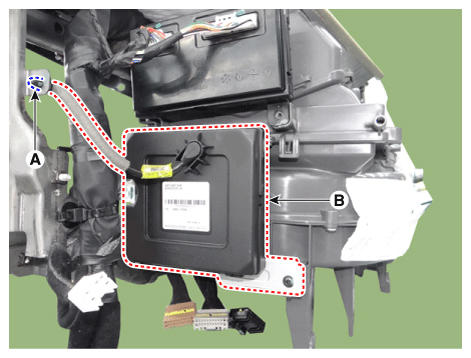

Remove the body control module antenna mounting clip (A).
Remove the body control module (BCM) (B).

Fig 3: Locating BCM & BCM Antenna Mounting Clip
Courtesy of KIA MOTORS AMERICA, INC.
