Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center speaker grille (A).

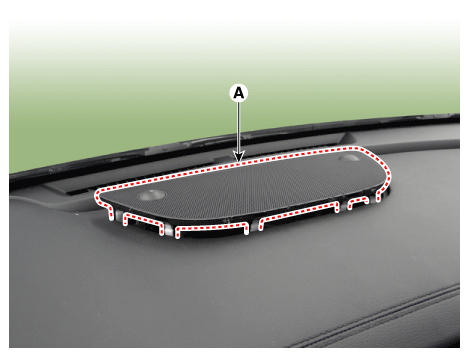

    Fig 1: Locating Crash Pad Center Speaker Grille
    G12297262Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the security indicator connector (A) and photo sensor & auto light sensor connector (B).

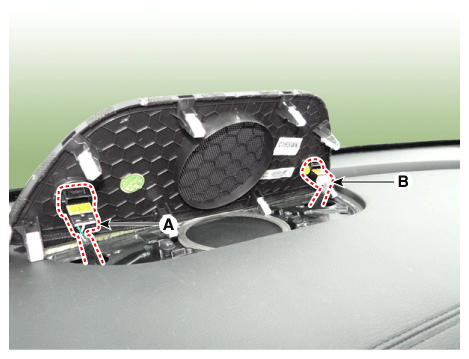

    Fig 2: Locating Security Indicator Connector & Photo Sensor & Auto Light Sensor Connector
    G12297263Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the photo sensor & auto light sensor (A) by pressing the locking pin.

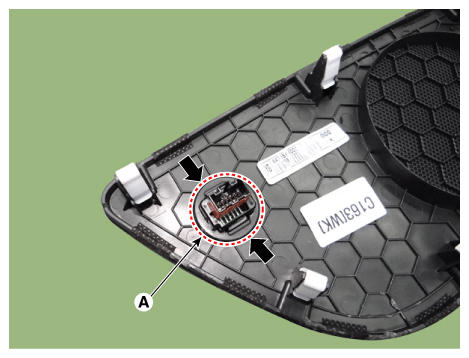

    Fig 3: Locating Photo Sensor & Auto Light Sensor
    G12297264Courtesy of KIA MOTORS AMERICA, INC.
