Components And Components Location: Component

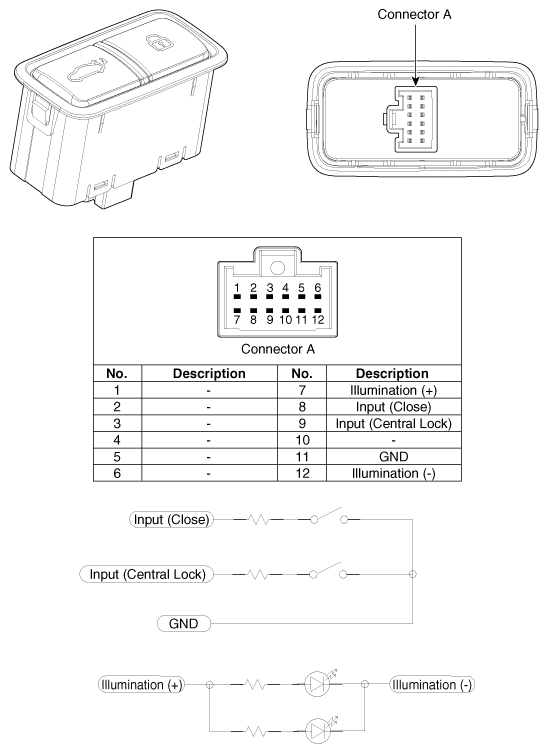

Fig 1: Locating Power Trunk Inner Switch With Connector End View
G12298838Courtesy of KIA MOTORS AMERICA, INC.
