Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the interior 2 antenna (A) after loosening the mounting nuts and disconnecting the connector.

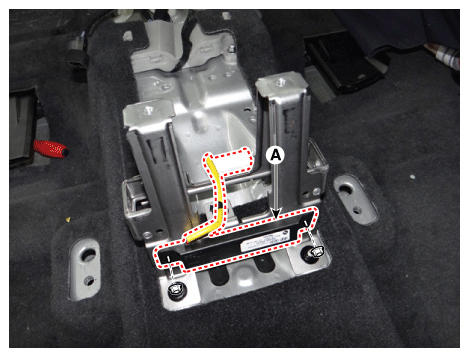

    Fig 1: Locating Interior 2 Antenna With Mounting Nuts
    G12298940Courtesy of KIA MOTORS AMERICA, INC.
